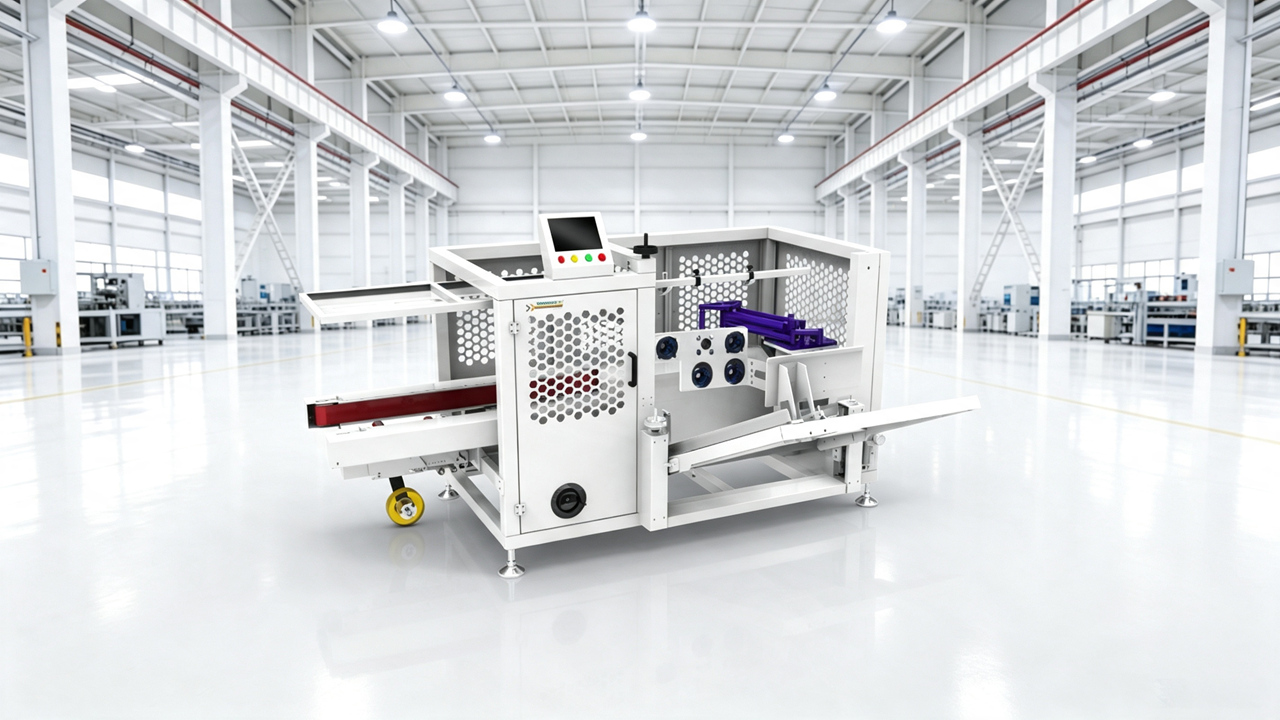

TKXS-400 3-Servo Robotic Case Erecting Machine
The TKXS-400 3-Servo Robotic Case Erecting Machine is designed for factories that want robotic carton handling for small and standard cartons at a standard medium speed. It picks folded cartons, opens them into square cases, folds the bottom flaps, and seals the bottom with tape.
As the compact model in Soontrue Group's T Series, the TKXS-400 uses a 3-servo robotic box erecting structure. It is suitable for production lines that need more advanced carton handling than a simple automatic case erector, but do not require the high-speed 5-servo platform of the K Series.
The TKXS-400 supports carton sizes from L 145-400 mm, W 85-350 mm, and H 150-350 mm, with a speed of 5-25 boxes/min. It is suitable for small and standard carton applications in food, tissue, daily-use products, pharmaceutical products, and consumer goods packaging lines.
Compared with KXS-400, the TKXS-400 is a medium-speed robotic solution. Compared with D Series machines, it provides a higher level of robotic carton handling.
Tape sealing is standard. Hot melt glue sealing is optional.
Best fit: TKXS-400 is best suited for small and standard cartons when the factory wants robotic box erecting at a medium speed without choosing the higher-speed KXS-400.
The TKXS-400 uses a 3-servo robotic structure to control carton picking, opening, forming, and discharge. This provides more controlled carton movement than basic automatic case erecting.
The TKXS-400 runs at 5-25 boxes/min, making it suitable for standard automatic packaging lines. It does not target the highest speed level, but focuses on stable robotic carton forming.
The machine folds bottom flaps and seals the carton bottom with tape as standard. The applicable tape width is ≤48 mm. Hot melt glue sealing is optional.
The TKXS-400 supports L 145-400 mm, W 85-350 mm, and H 150-350 mm cartons. It is suitable for small and standard cartons.
The TKXS-400 can connect with case packers, case sealers, checkweighers, labelers, conveyors, and palletizers.
This section can show the TKXS-400 running at a standard medium-speed rhythm.
Buyers should check whether the 3-servo robotic carton handling provides stable carton picking, opening, forming, tape sealing, and output. The focus should be on balanced operation rather than maximum speed.
If comparing with KXS-400, the video should show that TKXS-400 is suitable for standard-speed lines, while KXS-400 is selected for higher-speed requirements.
| Model | TKXS-400 | TKXM-500 | TKXL-650 | KXS-400 | KXM-500 | KXL-650 | DKXM-500 | DKXL-650 |
|---|---|---|---|---|---|---|---|---|
| Servo control | 3 | 3 | 3 | 5 | 5 | 5 | 2 | 2 |
| Erecting speed | ≤ 25 boxes/min | ≤ 25 boxes/min | ≤ 20 boxes/min | ≤ 35 boxes/min | ≤ 30 boxes/min | ≤ 25 boxes/min | ≤ 14 boxes/min | ≤ 14 boxes/min |
| Box size range | L 145-400mm | L 280-500mm | L 280-650mm | L 145-400mm | L 280-500mm | L 280-650mm | L 280-500mm | L 280-650mm |
| W 85-350 mm | W 150-400 mm | W 180-500 mm | W 85-350 mm | W 150-400 mm | W 180-500 mm | W 135-400 mm | W 135-500 mm | |
| H 105-350 mm | H 150-400 mm | H 150-500 mm | H 105-350 mm | H 150-400 mm | H 150-500 mm | H 150-400 mm | H 150-500 mm | |
| Box action | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Servo drived box erecting | Servo drived box erecting |
| Rated power | 2.1 KW | 2.1 KW | 2.1 KW | 2.5 KW | 2.5 KW | 2.5 KW | 1 KW | 1 KW |
| Air source | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Power supply | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz |
| Machine weight | 450 kg | 620 kg | 900 kg | 450 kg | 620 kg | 900 kg | 350 kg | 550 kg |
| Machine size | 2400x1900x1400 mm | 2600x2000x1450 mm | 3120x2220x1580 mm | 2400x2000x1400 mm | 2600x2000x1400 mm | 2920x2100x1550 mm | 2000x1900x1400 mm | 2310x2000x1590 mm |
| View machine | View machine | View machine | View machine | View machine | View machine | View machine |
The TKXS-400 can be used as the carton forming unit in standard end-of-line packaging systems. It prepares cartons before manual or automatic loading, top sealing, labeling, and palletizing.
A typical line may include TKXS-400 robotic case erecting, case packing, case sealing, checkweighing, labeling, conveying, and palletizing.
This model is suitable when robotic carton forming is needed, but the line does not require the higher speed of the K Series.
TKXS-400 is used for automatic robotic forming of small and standard cartons.
Choose TKXS-400 when you need robotic carton handling at medium speed but do not require the high-speed 5-servo structure of KXS-400.
TKXS-400 is a 3-servo robotic machine for small and standard cartons. DKXM-500 is a 2-servo automatic machine for medium cartons and lower-speed lines.
No. Tape sealing is standard. Hot melt glue sealing is optional.
Yes. It can connect with case packers, case sealers, checkweighers, labelers, conveyors, and palletizers.
Please provide carton size, carton material, carton samples, speed requirement, sealing preference, and line layout.
