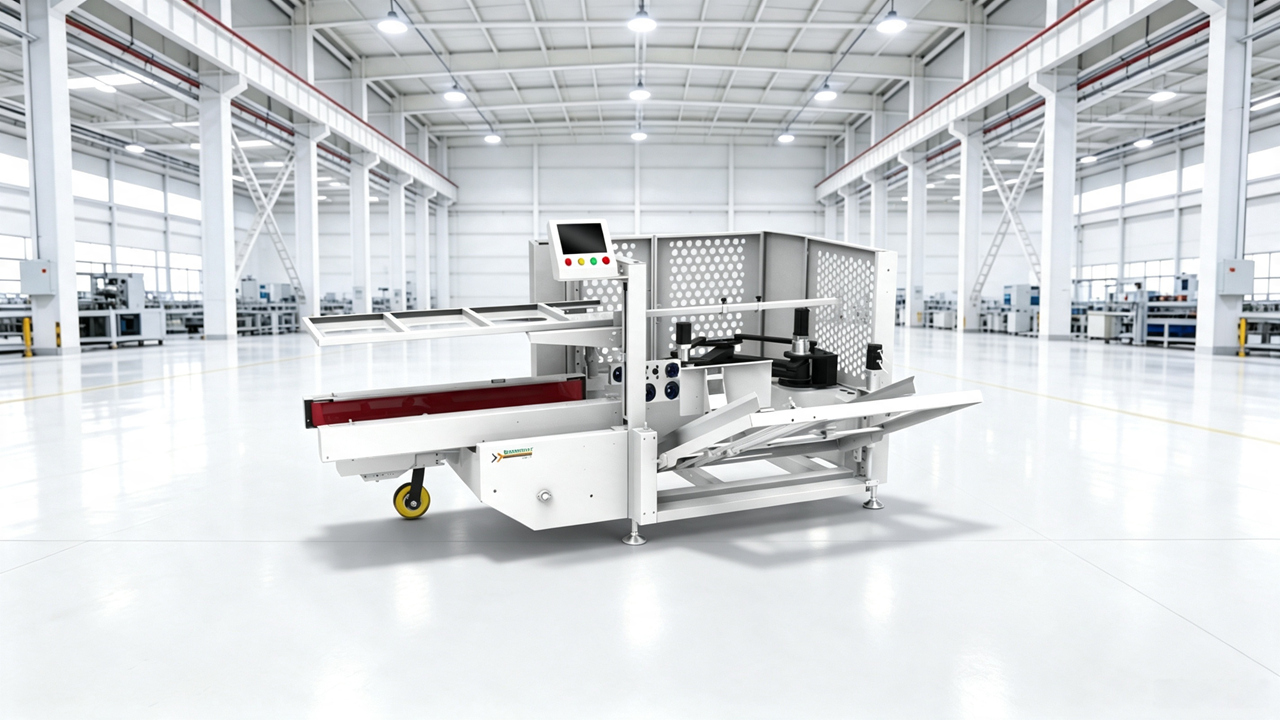

KXS-400 5-Servo Robotic Case Erecting Machine
The KXS-400 5-Servo Robotic Case Erecting Machine is designed for production lines that need high-speed carton forming for small and standard cartons. It uses a 5-servo robotic box erecting structure to pick folded cartons, open them into square cases, fold the bottom flaps, and seal the carton bottom with tape.
As the compact high-speed model in Soontrue Group's K Series, the KXS-400 is best suited for lines where carton size is not large but carton supply speed is critical. It supports carton sizes from L 145-400 mm, W 85-350 mm, and H 150-350 mm, with a case erecting speed of 5-35 boxes/min.
The KXS-400 is different from medium and large carton models such as KXM-500 and KXL-650. Its advantage is speed and compact carton handling, not large carton range. For buyers running small or standard cartons at higher line speeds, it offers a more suitable platform than choosing an oversized case erector.
Compared with the T Series and D Series, the KXS-400 is positioned for higher-speed robotic carton forming. It is selected when the production line needs stronger servo motion coordination and a faster carton forming rhythm before automatic case packing.
Tape sealing is the standard bottom sealing method. Hot melt glue sealing is available only as an optional configuration when the production line requires glue-sealed cartons.
Best fit: KXS-400 is best suited for small and standard cartons when the line needs the fastest K Series carton forming speed and stable robotic case erecting before downstream case packing.
The KXS-400 uses a 5-servo robotic carton handling structure to control carton picking, opening, forming, and output. This helps maintain stable carton movement at higher speeds.
With a speed range of 5-35 boxes/min, the KXS-400 is the fastest model in the K Series. It is suitable when the carton size is within the compact range and the line requires fast carton supply. This makes it a better choice than KXM-500 or KXL-650 when the carton does not require a larger machine platform.
The machine opens folded cartons, forms them into square cases, folds the bottom flaps, and seals the bottom with tape. Tape sealing is the standard bottom sealing method. Hot melt glue sealing can be configured as an option when the buyer's carton standard or factory requirement calls for glue sealing.
The KXS-400 supports carton sizes from L 145-400 mm, W 85-350 mm, and H 150-350 mm. It is suitable for small and standard outer cartons used in food, tissue, daily-use products, pharmaceutical products, and consumer goods.
The KXS-400 can be connected with case packers, case sealers, checkweighers, labelers, conveyors, and palletizers. It supplies formed and bottom-sealed cartons for downstream packing. Soontrue Group can configure the line according to carton size, case packing speed, product loading method, and factory layout.
This section can show the KXS-400 running high-speed robotic carton forming.
Through the video, buyers should check whether cartons are picked smoothly, opened squarely, folded correctly, and sealed firmly while the machine runs at a higher rhythm. For KXS-400, the key point is whether the 5-servo robotic motion keeps carton forming stable at high speed.
The video should also show bottom tape alignment, carton discharge position, and whether the formed carton enters the downstream case packing line smoothly.
| Model | TKXS-400 | TKXM-500 | TKXL-650 | KXS-400 | KXM-500 | KXL-650 | DKXM-500 | DKXL-650 |
|---|---|---|---|---|---|---|---|---|
| Servo control | 3 | 3 | 3 | 5 | 5 | 5 | 2 | 2 |
| Erecting speed | ≤ 25 boxes/min | ≤ 25 boxes/min | ≤ 20 boxes/min | ≤ 35 boxes/min | ≤ 30 boxes/min | ≤ 25 boxes/min | ≤ 14 boxes/min | ≤ 14 boxes/min |
| Box size range | L 145-400mm | L 280-500mm | L 280-650mm | L 145-400mm | L 280-500mm | L 280-650mm | L 280-500mm | L 280-650mm |
| W 85-350 mm | W 150-400 mm | W 180-500 mm | W 85-350 mm | W 150-400 mm | W 180-500 mm | W 135-400 mm | W 135-500 mm | |
| H 105-350 mm | H 150-400 mm | H 150-500 mm | H 105-350 mm | H 150-400 mm | H 150-500 mm | H 150-400 mm | H 150-500 mm | |
| Box action | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Servo drived box erecting | Servo drived box erecting |
| Rated power | 2.1 KW | 2.1 KW | 2.1 KW | 2.5 KW | 2.5 KW | 2.5 KW | 1 KW | 1 KW |
| Air source | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Power supply | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz |
| Machine weight | 450 kg | 620 kg | 900 kg | 450 kg | 620 kg | 900 kg | 350 kg | 550 kg |
| Machine size | 2400x1900x1400 mm | 2600x2000x1450 mm | 3120x2220x1580 mm | 2400x2000x1400 mm | 2600x2000x1400 mm | 2920x2100x1550 mm | 2000x1900x1400 mm | 2310x2000x1590 mm |
| View machine | View machine | View machine | View machine | View machine | View machine | View machine |
The KXS-400 can be used as the carton forming unit in high-speed end-of-line packaging systems. It prepares cartons before automatic product loading by opening folded carton blanks, forming them into square cases, folding the bottom flaps, and sealing the bottom with tape.
A typical line may include the KXS-400 robotic case erecting machine, automatic case packer, case sealer, checkweigher, labeling system, conveyor system, and palletizer.
This model is suitable for factories that need fast carton supply for small or standard cartons without using a larger case erecting platform.
The KXS-400 is used to automatically pick folded cartons, open them into square cases, fold the bottom flaps, and seal the carton bottom with tape.
Choose KXS-400 when your carton size is small or standard and your production line needs high-speed robotic carton forming up to 35 boxes/min.
KXS-400 is a 5-servo high-speed robotic case erecting machine, while TKXS-400 is a 3-servo medium-speed robotic model. Choose KXS-400 when higher speed and stronger servo coordination are required.
KXS-400 is a high-speed robotic model for smaller cartons. DKXM-500 is a 2-servo automatic case erecting machine for medium cartons at lower speed.
No. Tape sealing is standard. Hot melt glue sealing is optional.
Cartons should have suitable stiffness, clean folding lines, and stable opening performance. Poor carton quality may affect suction, forming, and sealing stability.
Please provide carton size, carton samples, carton material, required speed, sealing preference, downstream equipment, and factory layout.
