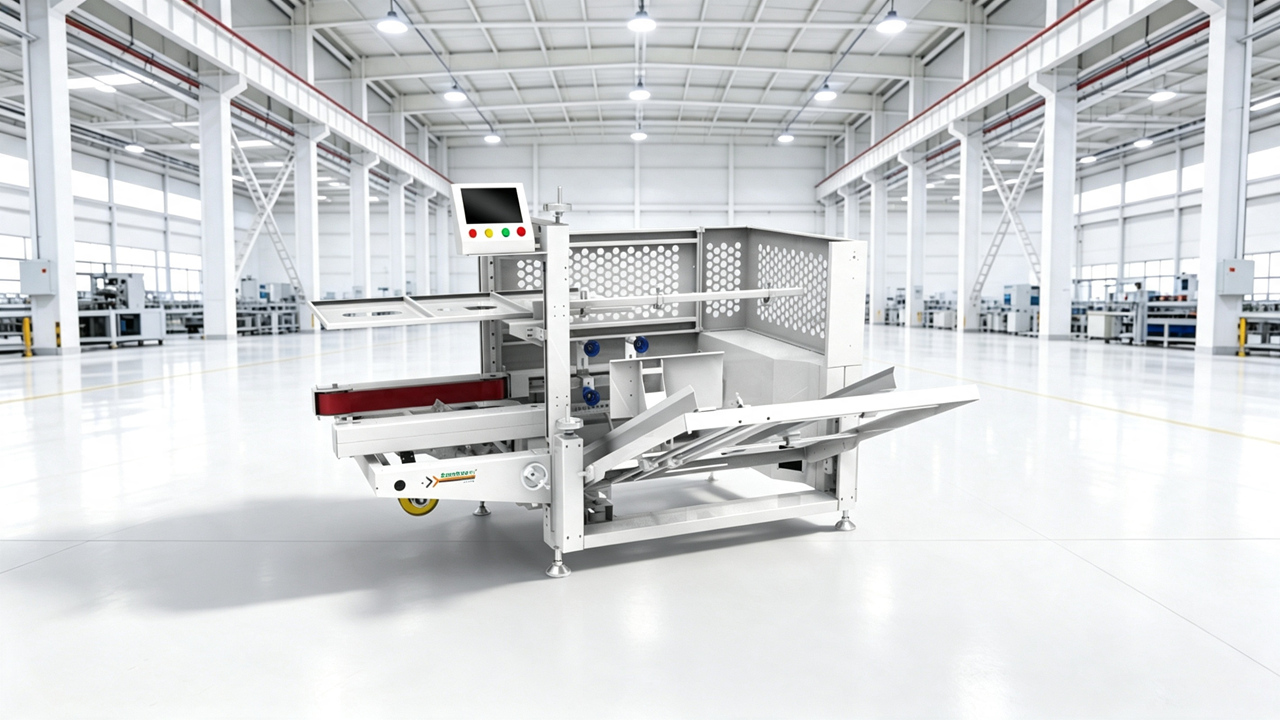

DKXM-500 2-Servo Automatic Case Erecting Machine
The DKXM-500 2-Servo Automatic Case Erecting Machine is a practical automatic box erecting machine for medium cartons. It is designed for factories that need to replace manual carton forming with automatic carton opening, bottom flap folding, and tape sealing at a lower or standard line speed.
As part of Soontrue Group's D Series, the DKXM-500 uses a 2-servo automatic carton forming structure. It is not positioned as a robotic high-speed model. Instead, it focuses on practical automation, stable carton forming, and easier integration into standard or lower-speed end-of-line packaging lines.
The DKXM-500 supports carton sizes from L 280-500 mm, W 150-400 mm, and H 150-400 mm, with a speed of 5-15 boxes/min.
Compared with TKXM-500 and KXM-500, the DKXM-500 is more suitable when line speed is lower, investment needs to be controlled, and the main requirement is reliable automatic carton forming rather than robotic high-speed performance.
Tape sealing is standard. Hot melt glue sealing is optional.
Best fit: DKXM-500 is best suited for medium cartons in lower-speed or budget-conscious packaging lines where the buyer needs stable automatic carton forming and tape sealing.
The DKXM-500 uses a 2-servo structure to support automatic carton picking, opening, forming, and discharge. It provides a practical alternative to manual carton forming. This makes it suitable for factories moving from manual operation to automated case erecting.
The DKXM-500 runs at 5-15 boxes/min, making it suitable for lower-speed automatic lines, semi-automatic loading lines, or production environments where a high-speed robotic case erector is not required.
The machine folds bottom flaps and seals the carton bottom with tape as standard. The applicable tape width is ≤60 mm. Hot melt glue sealing is optional.
The DKXM-500 supports carton sizes from L 280-500 mm, W 150-400 mm, and H 150-400 mm. It is suitable for medium shipping cartons and outer cartons used in food, tissue, daily-use products, pharmaceuticals, and consumer goods.
The DKXM-500 can connect with case sealers, conveyors, checkweighers, labelers, palletizers, and manual or automatic loading stations. It helps factories reduce manual carton forming and improve line consistency.
This section can show the DKXM-500 running at a steady lower-speed rhythm.
Buyers should check whether the machine can reliably replace manual carton forming: carton picking, opening, square forming, bottom flap folding, tape sealing, and output.
For D Series models, the video should focus on stable automatic operation, clean tape sealing, and smooth carton discharge rather than robotic high-speed movement.
| Model | TKXS-400 | TKXM-500 | TKXL-650 | KXS-400 | KXM-500 | KXL-650 | DKXM-500 | DKXL-650 |
|---|---|---|---|---|---|---|---|---|
| Servo control | 3 | 3 | 3 | 5 | 5 | 5 | 2 | 2 |
| Erecting speed | ≤ 25 boxes/min | ≤ 25 boxes/min | ≤ 20 boxes/min | ≤ 35 boxes/min | ≤ 30 boxes/min | ≤ 25 boxes/min | ≤ 14 boxes/min | ≤ 14 boxes/min |
| Box size range | L 145-400mm | L 280-500mm | L 280-650mm | L 145-400mm | L 280-500mm | L 280-650mm | L 280-500mm | L 280-650mm |
| W 85-350 mm | W 150-400 mm | W 180-500 mm | W 85-350 mm | W 150-400 mm | W 180-500 mm | W 135-400 mm | W 135-500 mm | |
| H 105-350 mm | H 150-400 mm | H 150-500 mm | H 105-350 mm | H 150-400 mm | H 150-500 mm | H 150-400 mm | H 150-500 mm | |
| Box action | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Servo drived box erecting | Servo drived box erecting |
| Rated power | 2.1 KW | 2.1 KW | 2.1 KW | 2.5 KW | 2.5 KW | 2.5 KW | 1 KW | 1 KW |
| Air source | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Power supply | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz |
| Machine weight | 450 kg | 620 kg | 900 kg | 450 kg | 620 kg | 900 kg | 350 kg | 550 kg |
| Machine size | 2400x1900x1400 mm | 2600x2000x1450 mm | 3120x2220x1580 mm | 2400x2000x1400 mm | 2600x2000x1400 mm | 2920x2100x1550 mm | 2000x1900x1400 mm | 2310x2000x1590 mm |
| View machine | View machine | View machine | View machine | View machine | View machine | View machine |
The DKXM-500 can be used in standard or lower-speed end-of-line packaging systems. It prepares formed cartons before manual loading, automatic loading, top sealing, labeling, and palletizing.
A typical line may include DKXM-500 automatic case erecting, manual or automatic case packing, case sealing, checkweighing, labeling, conveying, and palletizing.
This model is suitable for factories that need practical automatic carton forming without investing in a higher-speed robotic case erecting system.
DKXM-500 is used for automatic forming and bottom tape sealing of medium cartons.
Choose DKXM-500 when the production line speed is lower, the budget is more controlled, and the main requirement is replacing manual carton forming with automatic case erecting. If higher speed or robotic carton handling is required, TKXM-500 or KXM-500 may be more suitable.
No. DKXM-500 is better described as a 2-servo automatic case erecting machine. The K and T Series are positioned as robotic box erecting machines.
DKXM-500 is for medium cartons. DKXL-650 supports larger cartons.
No. Tape sealing is standard. Hot melt glue sealing is optional.
Please provide carton size, carton material, carton samples, required speed, sealing preference, and downstream line layout.
