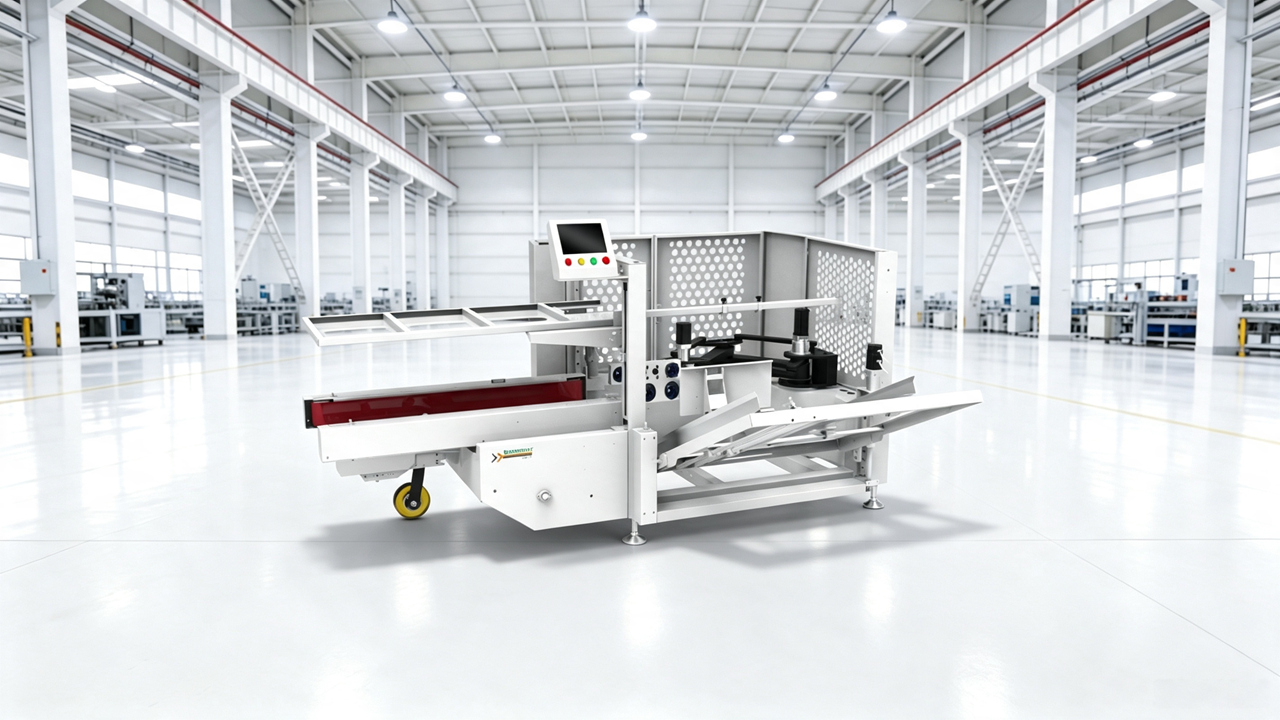

KXM-500 5-Servo Robotic Case Erecting Machine
The KXM-500 5-Servo Robotic Case Erecting Machine is built for medium carton forming in high-speed end-of-line packaging lines. It combines a 5-servo robotic carton handling platform with automatic carton picking, opening, bottom flap folding, and tape sealing.
As the medium-carton model in Soontrue Group's K Series, the KXM-500 is designed for buyers who need a larger carton range than KXS-400 while still requiring high-speed robotic carton forming. It supports carton sizes from L 280-500 mm, W 150-400 mm, and H 150-400 mm, with a speed of 5-30 boxes/min.
The KXM-500 is the balanced high-speed model in the K Series. Compared with KXS-400, it handles larger cartons. Compared with KXL-650, it is more suitable when the carton size remains within a medium range and the buyer does not need a large-carton platform.
Compared with TKXM-500 and DKXM-500, the KXM-500 is selected when the production line requires higher speed, stronger servo motion coordination, and more stable carton forming for continuous automatic case packing.
Tape sealing is standard. Hot melt glue sealing is optional.
Best fit: KXM-500 is best suited for medium cartons in high-speed automatic packaging lines where carton forming must keep pace with continuous case packing.
The KXM-500 uses a 5-servo robotic box erecting structure to control carton picking, opening, forming, and output. This improves motion coordination during continuous medium-carton operation. For production lines that run at higher speeds, this servo structure helps keep cartons square and ready for downstream loading.
The KXM-500 reaches 5-30 boxes/min, making it suitable for high-speed end-of-line packaging systems using medium cartons.
The machine folds the bottom flaps and seals the carton bottom with tape as standard. The applicable tape width is ≤60 mm. Hot melt glue sealing can be provided as an optional configuration for lines that require glue-sealed cartons.
The KXM-500 supports carton sizes from L 280-500 mm, W 150-400 mm, and H 150-400 mm. It is suitable for medium shipping cartons and outer cartons used in food, tissue, daily-use products, pharmaceuticals, and consumer goods.
The KXM-500 can connect with automatic case packers, case sealers, checkweighers, labelers, conveyors, and palletizers. Soontrue Group can configure the complete end-of-line system according to carton size, product loading method, case packing pattern, and target line speed.
This section can show the KXM-500 running medium carton forming in a high-speed end-of-line packaging line.
Buyers should check robotic carton picking, suction cup stability, opening angle, square case forming, bottom flap folding, tape application, and carton output. For KXM-500, the key point is whether medium cartons stay square and stable at a higher production rhythm.
If connected with a case packer, the video should also show whether formed cartons are delivered smoothly into the downstream loading position.
| Model | TKXS-400 | TKXM-500 | TKXL-650 | KXS-400 | KXM-500 | KXL-650 | DKXM-500 | DKXL-650 |
|---|---|---|---|---|---|---|---|---|
| Servo control | 3 | 3 | 3 | 5 | 5 | 5 | 2 | 2 |
| Erecting speed | ≤ 25 boxes/min | ≤ 25 boxes/min | ≤ 20 boxes/min | ≤ 35 boxes/min | ≤ 30 boxes/min | ≤ 25 boxes/min | ≤ 14 boxes/min | ≤ 14 boxes/min |
| Box size range | L 145-400mm | L 280-500mm | L 280-650mm | L 145-400mm | L 280-500mm | L 280-650mm | L 280-500mm | L 280-650mm |
| W 85-350 mm | W 150-400 mm | W 180-500 mm | W 85-350 mm | W 150-400 mm | W 180-500 mm | W 135-400 mm | W 135-500 mm | |
| H 105-350 mm | H 150-400 mm | H 150-500 mm | H 105-350 mm | H 150-400 mm | H 150-500 mm | H 150-400 mm | H 150-500 mm | |
| Box action | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Servo drived box erecting | Servo drived box erecting |
| Rated power | 2.1 KW | 2.1 KW | 2.1 KW | 2.5 KW | 2.5 KW | 2.5 KW | 1 KW | 1 KW |
| Air source | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Power supply | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz |
| Machine weight | 450 kg | 620 kg | 900 kg | 450 kg | 620 kg | 900 kg | 350 kg | 550 kg |
| Machine size | 2400x1900x1400 mm | 2600x2000x1450 mm | 3120x2220x1580 mm | 2400x2000x1400 mm | 2600x2000x1400 mm | 2920x2100x1550 mm | 2000x1900x1400 mm | 2310x2000x1590 mm |
| View machine | View machine | View machine | View machine | View machine | View machine | View machine |
The KXM-500 can be used as the carton forming unit in medium-carton high-speed packaging lines. It prepares cartons for automatic case packing by forming, folding, and bottom sealing each carton before product loading.
A typical line may include KXM-500 robotic case erecting, automatic case packing, case sealing, checkweighing, labeling, conveying, and palletizing.
This model is suitable for factories that need fast and stable medium-carton supply for continuous secondary packaging.
The KXM-500 is used to automatically form medium cartons for downstream case packing lines.
Choose KXM-500 when the line requires higher case erecting speed, stronger servo motion coordination, and stable carton forming for continuous automatic case packing. TKXM-500 is more suitable for medium-speed robotic case erecting, while DKXM-500 is suitable for lower-speed automatic carton forming.
KXM-500 supports larger carton sizes, while KXS-400 is faster and more compact for smaller cartons.
KXM-500 is for medium cartons. KXL-650 is selected when carton dimensions require a larger carton platform.
Yes. Tape sealing is standard. Hot melt glue sealing is optional.
Yes. It can connect with case packers, case sealers, checkweighers, labelers, conveyors, and palletizers.
Please provide carton size, carton material, carton samples, required speed, sealing method, and downstream line layout.
