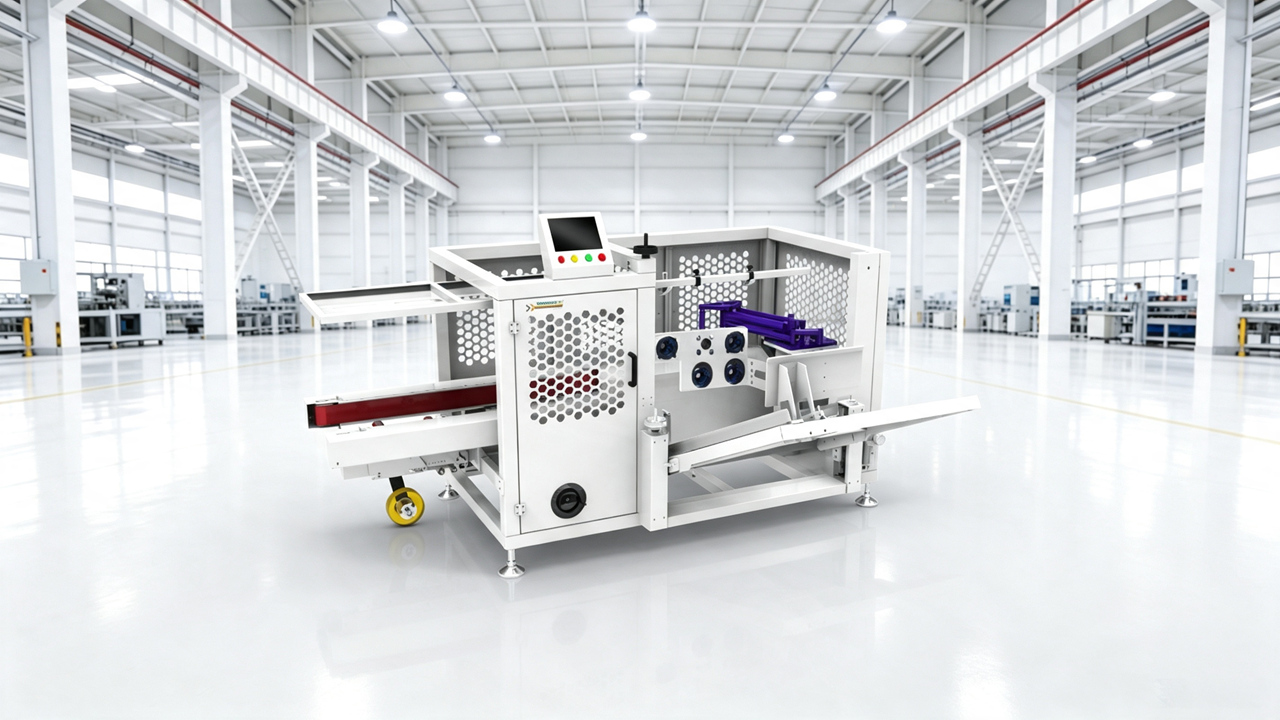

TKXM-500 3-Servo Robotic Case Erecting Machine
The TKXM-500 3-Servo Robotic Case Erecting Machine is a medium-carton robotic box erecting machine for standard end-of-line packaging lines. It is designed for factories that want robotic carton handling without moving to the higher-speed 5-servo K Series.
As the medium-carton model in Soontrue Group's T Series, the TKXM-500 supports carton sizes from L 280-500 mm, W 150-400 mm, and H 150-400 mm, with a speed of 5-25 boxes/min.
The TKXM-500 fills the gap between the high-speed KXM-500 and the practical DKXM-500. It offers 3-servo robotic carton handling for buyers who want stable medium-speed carton forming with a better automation level than the D Series.
Compared with KXM-500, the TKXM-500 is more suitable when the line does not require high-speed 5-servo performance. Compared with DKXM-500, it provides a more advanced robotic carton handling structure.
Tape sealing is standard. Hot melt glue sealing is optional.
Best fit: TKXM-500 is best suited for medium cartons when the buyer wants a balanced 3-servo robotic case erecting solution for standard-speed packaging lines.
The TKXM-500 uses a 3-servo robotic case forming structure to pick, open, form, and discharge cartons. It provides stable carton handling for medium carton sizes.
The TKXM-500 runs at 5-25 boxes/min, making it suitable for standard automatic end-of-line packaging lines.
The machine folds bottom flaps and seals the carton bottom with tape as standard. The applicable tape width is ≤60 mm. Hot melt glue sealing is optional.
The TKXM-500 supports carton sizes from L 280-500 mm, W 150-400 mm, and H 150-400 mm.
The TKXM-500 can connect with automatic case packers, carton sealers, checkweighers, labeling systems, conveyors, and palletizers. Soontrue Group can configure the full line according to carton size, product loading method, packing speed, and factory layout.
This section can show the TKXM-500 running medium carton forming at standard speed.
Buyers should check robotic carton picking, suction stability, opening angle, square forming, bottom flap folding, tape sealing, and output. For TKXM-500, the key point is whether the 3-servo motion provides stable medium-carton forming without requiring a high-speed K Series machine.
The video should also show carton transfer into downstream case packing or sealing equipment.
| Model | TKXS-400 | TKXM-500 | TKXL-650 | KXS-400 | KXM-500 | KXL-650 | DKXM-500 | DKXL-650 |
|---|---|---|---|---|---|---|---|---|
| Servo control | 3 | 3 | 3 | 5 | 5 | 5 | 2 | 2 |
| Erecting speed | ≤ 25 boxes/min | ≤ 25 boxes/min | ≤ 20 boxes/min | ≤ 35 boxes/min | ≤ 30 boxes/min | ≤ 25 boxes/min | ≤ 14 boxes/min | ≤ 14 boxes/min |
| Box size range | L 145-400mm | L 280-500mm | L 280-650mm | L 145-400mm | L 280-500mm | L 280-650mm | L 280-500mm | L 280-650mm |
| W 85-350 mm | W 150-400 mm | W 180-500 mm | W 85-350 mm | W 150-400 mm | W 180-500 mm | W 135-400 mm | W 135-500 mm | |
| H 105-350 mm | H 150-400 mm | H 150-500 mm | H 105-350 mm | H 150-400 mm | H 150-500 mm | H 150-400 mm | H 150-500 mm | |
| Box action | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Servo drived box erecting | Servo drived box erecting |
| Rated power | 2.1 KW | 2.1 KW | 2.1 KW | 2.5 KW | 2.5 KW | 2.5 KW | 1 KW | 1 KW |
| Air source | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Power supply | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz |
| Machine weight | 450 kg | 620 kg | 900 kg | 450 kg | 620 kg | 900 kg | 350 kg | 550 kg |
| Machine size | 2400x1900x1400 mm | 2600x2000x1450 mm | 3120x2220x1580 mm | 2400x2000x1400 mm | 2600x2000x1400 mm | 2920x2100x1550 mm | 2000x1900x1400 mm | 2310x2000x1590 mm |
| View machine | View machine | View machine | View machine | View machine | View machine | View machine |
The TKXM-500 can be used as the carton forming unit in standard medium-speed end-of-line packaging lines. It forms and bottom-seals cartons before automatic or manual product loading.
A complete line can include TKXM-500 robotic case erecting, case packing, case sealing, checkweighing, labeling, conveying, and palletizing.
This model is suitable when the buyer needs robotic carton forming for medium cartons but does not require the higher-speed KXM-500.
TKXM-500 is used for automatic robotic forming of medium cartons before case packing.
TKXM-500 is suitable when the buyer wants robotic carton handling but does not need the higher-speed 5-servo K Series. Compared with DKXM-500, it provides a more advanced 3-servo robotic structure for standard-speed lines.
TKXM-500 supports larger carton sizes. TKXS-400 is for small and standard cartons.
TKXM-500 is for medium cartons. TKXL-650 is selected for large carton sizes.
No. Tape sealing is standard. Hot melt glue sealing is optional.
Yes. It can connect with case packers, case sealers, conveyors, checkweighers, labelers, and palletizers.
