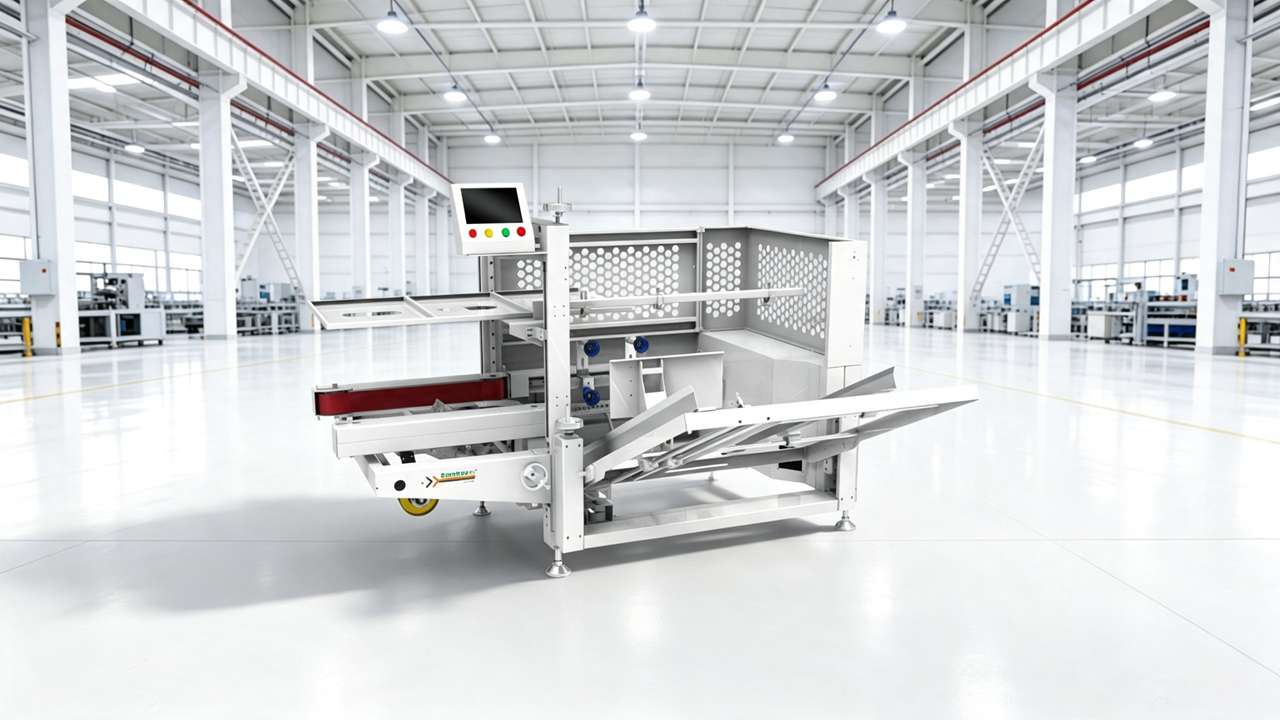

DKXL-650 2-Servo Automatic Case Erecting Machine
The DKXL-650 2-Servo Automatic Case Erecting Machine is a practical large-carton box erecting machine for lower-speed or standard-speed end-of-line packaging lines. It automatically picks folded cartons, opens them, folds the bottom flaps, and seals the bottom with tape.
As the large-carton model in Soontrue Group's D Series, the DKXL-650 is suitable when the buyer needs a larger carton range than DKXM-500, but does not require the robotic handling or higher speed of TKXL-650 or KXL-650.
The DKXL-650 supports carton sizes from L 280-650 mm, W 150-500 mm, and H 150-500 mm, with a speed of 5-15 boxes/min. It is selected when carton size is large but production speed remains moderate.
Compared with TKXL-650 and KXL-650, the DKXL-650 is a simpler 2-servo automatic solution. It is suitable for large cartons where the main requirement is stable automatic forming and tape sealing rather than high-speed robotic motion.
Tape sealing is standard. Hot melt glue sealing is optional.
Best fit: DKXL-650 is best suited for large cartons in lower-speed or cost-conscious packaging lines where stable automatic case forming is more important than high-speed robotic performance.
The DKXL-650 uses a 2-servo structure to support automatic carton picking, opening, forming, and output. It helps replace manual carton forming for larger carton sizes.
The machine runs at 5-15 boxes/min, making it suitable for large cartons in standard or lower-speed lines. For large cartons, stable forming, clean folding, and reliable bottom sealing are more important than maximum speed.
The DKXL-650 folds the bottom flaps and seals the carton bottom with tape as standard. The applicable tape width is ≤60 mm. Hot melt glue sealing is optional.
The DKXL-650 supports carton sizes from L 280-650 mm, W 150-500 mm, and H 150-500 mm. It is suitable when DKXM-500 cannot handle the required carton height, width, or length.
The DKXL-650 can connect with case sealers, conveyors, checkweighers, labelers, palletizers, and manual or automatic loading stations. For larger cartons, Soontrue Group can help evaluate carton discharge direction, packed carton weight, sealing method, and palletizing requirements.
This section can show DKXL-650 forming large cartons at a steady automatic rhythm.
Buyers should check large carton picking, opening, square forming, bottom flap folding, tape sealing, and discharge stability. For DKXL-650, the key point is whether larger cartons can be formed reliably without requiring a higher-speed robotic machine.
The video should also show tape sealing quality and whether the carton remains square before downstream product loading.
| Model | TKXS-400 | TKXM-500 | TKXL-650 | KXS-400 | KXM-500 | KXL-650 | DKXM-500 | DKXL-650 |
|---|---|---|---|---|---|---|---|---|
| Servo control | 3 | 3 | 3 | 5 | 5 | 5 | 2 | 2 |
| Erecting speed | ≤ 25 boxes/min | ≤ 25 boxes/min | ≤ 20 boxes/min | ≤ 35 boxes/min | ≤ 30 boxes/min | ≤ 25 boxes/min | ≤ 14 boxes/min | ≤ 14 boxes/min |
| Box size range | L 145-400mm | L 280-500mm | L 280-650mm | L 145-400mm | L 280-500mm | L 280-650mm | L 280-500mm | L 280-650mm |
| W 85-350 mm | W 150-400 mm | W 180-500 mm | W 85-350 mm | W 150-400 mm | W 180-500 mm | W 135-400 mm | W 135-500 mm | |
| H 105-350 mm | H 150-400 mm | H 150-500 mm | H 105-350 mm | H 150-400 mm | H 150-500 mm | H 150-400 mm | H 150-500 mm | |
| Box action | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Robotic box erecting | Servo drived box erecting | Servo drived box erecting |
| Rated power | 2.1 KW | 2.1 KW | 2.1 KW | 2.5 KW | 2.5 KW | 2.5 KW | 1 KW | 1 KW |
| Air source | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa | 0.6-0.7 Mpa |
| Power supply | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz | 220V/1ph/50Hz |
| Machine weight | 450 kg | 620 kg | 900 kg | 450 kg | 620 kg | 900 kg | 350 kg | 550 kg |
| Machine size | 2400x1900x1400 mm | 2600x2000x1450 mm | 3120x2220x1580 mm | 2400x2000x1400 mm | 2600x2000x1400 mm | 2920x2100x1550 mm | 2000x1900x1400 mm | 2310x2000x1590 mm |
| View machine | View machine | View machine | View machine | View machine | View machine | View machine |
The DKXL-650 can be used as the large-carton forming unit in standard end-of-line packaging systems. It prepares large cartons before product loading, case sealing, labeling, conveying, and palletizing.
A typical line may include DKXL-650 automatic case erecting, manual or automatic case packing, case sealing, checkweighing, labeling, conveying, and palletizing.
This model is suitable for factories that need large carton forming but do not require the higher-speed robotic K or T Series.
DKXL-650 is used for automatic forming and bottom tape sealing of large cartons.
Choose DKXL-650 when you need large carton forming at a lower or standard speed, and do not require robotic high-speed performance. TKXL-650 provides 3-servo robotic handling, while KXL-650 provides 5-servo high-speed robotic handling.
DKXL-650 supports larger carton sizes, especially larger length, width, and height ranges.
It is better suited for lower-speed or standard-speed lines. For higher-speed large carton forming, TKXL-650 or KXL-650 may be more suitable.
No. Tape sealing is standard. Hot melt glue sealing is optional.
Cartons should have good stiffness, accurate fold lines, and stable opening performance. Large cartons with poor folding lines may affect forming reliability.
Please provide carton size, carton samples, carton material, required speed, sealing preference, downstream loading method, and factory layout.
