ZH120 Tissue Cartoning Machine

  • Tissue product carton
  • Paper product carton
  • Standard folding carton
  • Glue sealing carton, if configured
  • Soontrue-Group-zh120-tissue-cartoning-machine

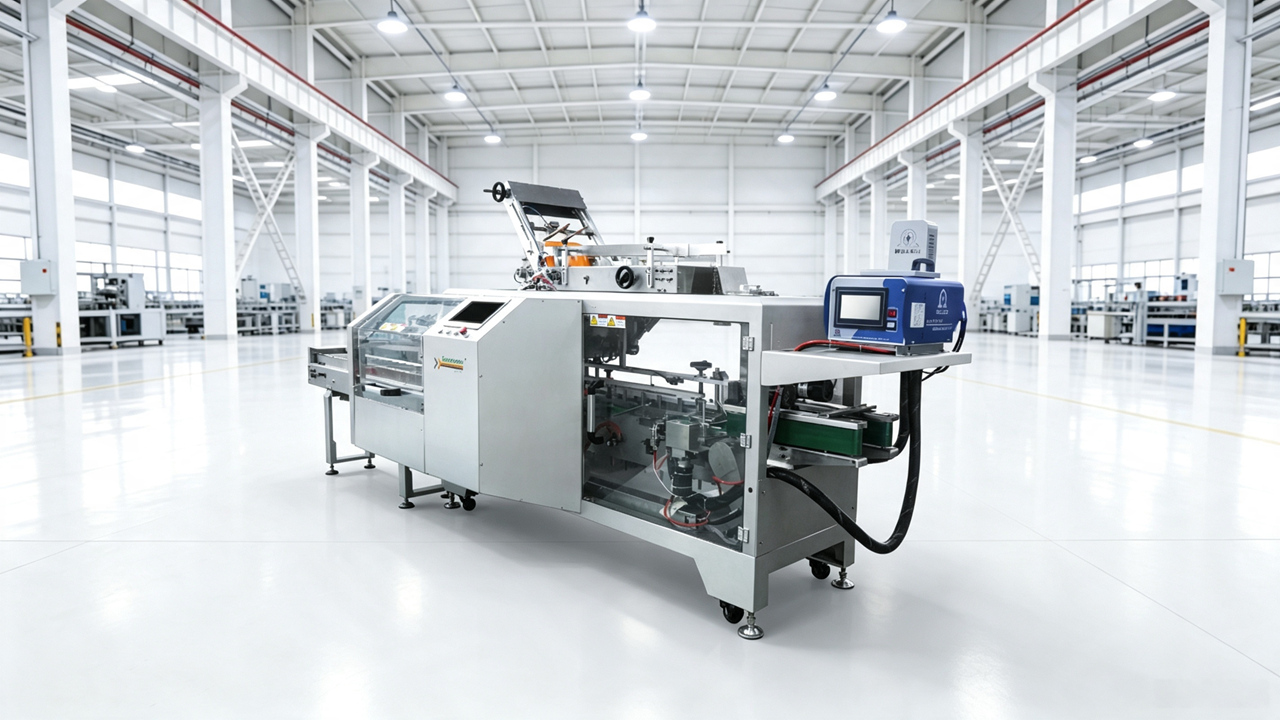

What is ZH120 Tissue Cartoning Machine?

The ZH120 Tissue Cartoning Machine is an automatic cartoning machine designed mainly for tissue and paper product carton packaging. It is suitable for facial tissue, soft tissue packs, paper product packs, and other suitable products that can be fed into cartons through a stable continuous infeed structure.
Unlike the ZH100 compact cartoning machine, which focuses on small cartons and small tuck-in carton applications, the ZH120 is more application-specific. Its main value is tissue cartoning. It is selected when the product format, feeding condition, and carton structure are suitable for continuous cartoning of tissue products.
The ZH120 can open folded cartons, receive tissue products from the infeed system, load products into cartons, and complete carton closing according to the configured carton style. It is especially suitable when the product can match a continuous push-rod infeed structure. Under suitable product conditions, this structure can support faster cartoning speed than some standard intermittent feeding methods.
This model should not be positioned as a universal cartoning machine for all carton types. For common glue sealing or tuck-in cartons across a broader range of products, ZH200 is usually the standard model to consider. For small carton applications, ZH100 may be more suitable. For special carton structures such as lock-bottom cartons or long cartons, ZH200G should be considered.
The ZH120 is suitable only when the tissue product size, product stiffness, compression condition, feeding direction, carton size, carton material, and carton closing method can match the machine's feeding and loading structure. Buyers should provide product samples, carton samples, and production videos before final confirmation.
Before requesting a quotation, buyers should provide tissue product size, product thickness, product compression condition, carton size, carton material, carton closing method, required speed, product feeding direction, upstream equipment, downstream equipment, and factory layout.
Best fit: ZH120 is best suited for tissue and paper product cartoning lines where the product can work with a continuous push-rod infeed structure and the buyer needs stable, faster tissue carton packaging.



soontrue-group-zh100-cartoning-machine

Special Feature Section

  • Designed for Tissue and Paper Product Cartoning

    01.

    The ZH120 is designed mainly for tissue cartoning applications. It is suitable for products such as facial tissue packs, soft tissue packs, paper product packs, and similar products that can be loaded into cartons in a stable and repeatable way.

    specification-bg

  • Continuous Push-Rod Infeed for Suitable Products

    02.

    One of the key advantages of the ZH120 is its suitability for continuous push-rod infeed applications. When the tissue product can match this feeding structure, the machine can achieve a smoother and faster cartoning rhythm.

    specification-bg

  • Faster Cartoning for Suitable Tissue Products

    03.

    The ZH120 can support faster cartoning performance when the product, carton, and feeding system are suitable. Its speed advantage depends on whether the tissue product can be continuously and reliably fed into the carton.

    specification-bg

  • Automatic Carton Opening, Product Loading, and Closing

    04.

    The ZH120 completes the main cartoning process: carton magazine feeding, carton opening, tissue product feeding, product loading, carton closing, and carton output.

    specification-bg

  • Integration with Tissue Packaging Lines

    05.

    The ZH120 can be integrated with upstream tissue production, tissue wrapping, conveying, arranging, and feeding systems. It can also connect with downstream checkweighers, labeling machines, case packers, case sealers, or palletizing systems.

    specification-bg

Product video

Through the video, buyers should check carton opening stability, infeed rhythm, continuous push-rod feeding, product loading accuracy, carton closing quality, and carton output stability.
For ZH120, the key viewing point is whether the can enter the carton smoothly through the infeed system. Buyers should observe whether the product stays aligned before loading, whether it deforms during pushing, and whether the carton closes cleanly after product insertion.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Model ZH100 ZH120 ZH200 ZH200G ZH200A ZH200L ZH300 ZH300A
Packing speed 30-70 cartons/min 80-120 cartons/min 30-70 cartons/min 30-70 cartons/min 30-70 cartons/min 30-70 cartons/min 20-50 cartons/min 30-70 cartons/min
Carton size range L 65-150mm L 140-250mm L 120-250mm L 120-250mm L 120-250mm L 150-250mm L 150-300mm L 150-300mm
W 25-110mm W 25-120mm W 45-180mm W 45-180mm W 45-180mm W 90-150mm W 45-240mm W 100-240mm
H 15-60mm H 60-100mm H 30-100mm H 30-100mm H 30-100mm H 30-90mm H 30-100mm H 45-100mm
Servo control 9 10 8 7 17 3 8 17
General power 9.5KW 9.5KW 9.5KW 8.75KW 9.5KW 9.5KW 9.5KW 9.5KW
Machine weight 950kg 1100kg 900kg 850kg 950kg 950kg 950kg 1100kg
Machine size 4250x1715x1700mm 4525x1960x1840mm 4263x1715x1900mm 4290x1715x1700mm 4290x1715x1700mm 4290x1715x1900mm 4452x1810x1915mm 4290x1715x1900mm
Machine body Carbon steel Carbon steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
Power  supply 380V/3PH/50Hz
Type of carton Optional models for glue flap carton or tuck-in flap carton
  View machine   View machine View machine View machine View machine View machine View machine

Application scenario

The ZH120 can be used as the cartoning unit in tissue and paper product packaging lines. It can work as a standalone cartoning machine or as part of a complete automatic tissue packaging system.
Tissue Wrapping Line + ZH120 Cartoning Machine
A typical line can be configured as:
Tissue wrapping machine → Product conveyor → ZH120 tissue cartoning machine → Carton output conveyor
This solution is suitable when wrapped tissue products need to be loaded into cartons after primary packaging. The product should arrive in a stable direction and spacing before entering the cartoning machine.
Tissue Product Arranging + ZH120 Cartoning
A typical line can be configured as:
Tissue product arranging system → Continuous infeed → ZH120 tissue cartoning machine → Carton closing
This solution is suitable when tissue products need to be organized before carton loading. Stable arranging helps the continuous push-rod infeed work more smoothly.
ZH120 Cartoning + Case Packing Line
A typical line can be configured as:
ZH120 tissue cartoning machine → Checkweigher / Labeling → Case packer → Case sealer → Palletizing
This solution is suitable when finished tissue cartons need to be packed into shipping cases after cartoning.
Complete Tissue Cartoning Solution
Soontrue Group can configure the full tissue cartoning solution according to tissue product size, carton size, feeding direction, production speed, carton closing method, and factory layout.
For complete line projects, product videos and carton samples are recommended before final design.


Bag-shaped

This section can show the ZH120 Tissue Cartoning Machine running tissue carton packaging.
Through the video, buyers should check carton opening stability, tissue product infeed rhythm, continuous push-rod feeding, product loading accuracy, carton closing quality, and carton output stability.
For ZH120, the key viewing point is whether the tissue product can enter the carton smoothly through the infeed system. Buyers should observe whether the product stays aligned before loading, whether it deforms during pushing, and whether the carton closes cleanly after product insertion.
If the video shows a complete line, buyers should also check the connection between upstream tissue wrapping or conveying equipment and the cartoning machine. The line should provide a stable product flow that matches the cartoning speed.
For buyers comparing ZH120 with ZH200 or ZH100, the video should make clear that ZH120 is selected for tissue cartoning applications, not for general-purpose carton packaging.

  • Box and Case Packaging

    Box and Case Packaging

FAQ



Q1: What is the ZH120 Tissue Cartoning Machine used for?

The ZH120 is mainly used for automatic cartoning of tissue and paper products. It opens cartons, feeds tissue products, loads them into cartons, and closes the cartons according to the configured carton style.

Q2: When should I choose ZH120?

Choose ZH120 when your product is a tissue or paper product and can match the required infeed structure. It is especially suitable when faster tissue cartoning is required under suitable product conditions.

Q3: Is ZH120 only for tissue products?

ZH120 is mainly positioned for tissue and paper product cartoning. Other products should be confirmed by sample testing, but for general-purpose carton packaging, ZH200 may be more suitable.

Q4: Why is ZH120 different from ZH100?

ZH100 is a compact cartoning machine for small cartons, especially small tuck-in cartons. ZH120 is an application-specific machine for tissue cartoning and suitable continuous infeed applications.

Q5: Why is ZH120 different from ZH200?

ZH200 is a standard cartoning machine for common glue sealing and tuck-in cartons across a broader product range. ZH120 focuses on tissue and paper product cartoning.

Q6: What does continuous push-rod infeed mean?

It means the product can be fed into the carton through a continuous pushing structure. This helps improve cartoning rhythm when the product is suitable, but it requires stable product shape, position, and feeding condition.

Q7: Can ZH120 handle glue sealing cartons?

It can be configured according to carton style and project requirements. If the carton uses glue sealing, glue position, carton material, carton coating, and hot melt glue system should be confirmed.

Q8: Can ZH120 handle tuck-in cartons?

It may be configured for suitable tuck-in cartons. The carton tongue length, folding line quality, carton stiffness, and pre-folding effect should be confirmed with samples.

Q9: Can ZH120 connect with upstream tissue packaging equipment?

Yes. ZH120 can connect with tissue wrapping machines, tissue product conveyors, arranging systems, and other upstream equipment according to the line design.

Q10: Can ZH120 connect with a case packing line?

Yes. Finished cartons can be connected to checkweighers, labeling machines, case packers, case sealers, conveyors, and palletizing systems.

Q11: What carton information should I provide before quotation?

Please provide carton length, width, height, carton material, carton samples, carton drawing, carton closing method, and whether the carton uses glue sealing or tuck-in closing.
