SI-150L On Edge Biscuit Packing Machine with L-Shape Conveyor

  • Biscuits
  • Cookie
  • SI-150L-On-Edge-Biscuit-Packing-Machine-with-L-Shape-Conveyo

What is SI-150L On Edge Biscuit Packing Machine?

The SI-150L On Edge Biscuit Packing Machine is a top film feed rotary biscuit flow wrapper with an L-shape conveyor. It is designed for trayless on-edge biscuit packaging where the production layout requires a turning or side-feeding arrangement before biscuits enter the wrapping section.
As part of Soontrue Group's on-edge biscuit packaging machine series, the SI-150L keeps the main purpose of the SI-150: arranging biscuits vertically, feeding them into the packaging machine, and completing pillow bag wrapping without trays. The key difference is the L-shape conveyor, which helps adapt the machine to production lines where space, product flow direction, or upstream equipment layout requires a 90-degree transfer path.
The SI-150L uses a 12-servo control system and a stainless steel machine body. It is suitable for biscuit factories that need trayless packaging, clean machine construction, and more flexible line layout than a straight infeed configuration.
Before requesting a quotation, buyers can prepare biscuit dimensions, stack quantity, line direction, available workshop space, target speed, bag size, and product photos or videos. Soontrue engineers can then evaluate whether the L-shape conveyor layout is necessary.

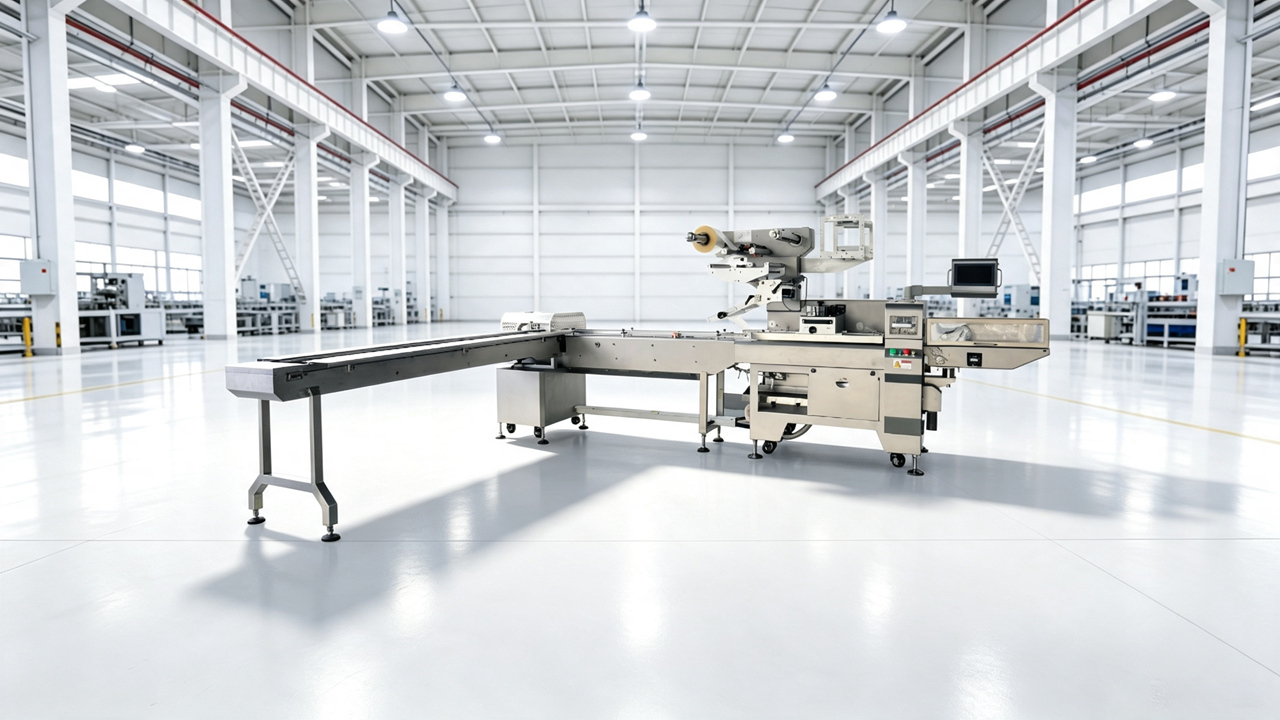

Soontrue-Group-SI150-On-edge-packaging-Machine

Special Feature Section

  • High-Speed Operation

    01.

    The SI-150L supports continuous on-edge biscuit packaging while allowing a more flexible line layout through its L-shape conveyor design.

    high-speed-flow-pack

  • Rotary Motion End Sealing

    02.

    The rotary motion end sealing system provides continuous sealing and cutting, helping maintain stable pillow bag quality for trayless biscuit packaging.

    Rotary-End-Sealing

  • Wide Range of Bagging Sizes

    03.

    The SI-150L can support different biscuit stack lengths and pillow bag formats within the machine's applicable range. Final bag size should be confirmed based on biscuit dimensions, stack arrangement, and film material.

    Wide-Range-of-Bagging-Sizes

  • Durable Construction

    04.

    The machine uses a stainless steel body, making it suitable for biscuit packaging environments that require clean operation, easier cleaning, and long-term durability.

    specification-bg

  • Servo Control System

    05.

    The 12-servo control system helps coordinate biscuit transfer, film feeding, sealing, and cutting, supporting stable packaging performance with the L-shape conveyor layout.

    specification-bg

Product video

This section can show the SI-150L packaging biscuits vertically with an L-shape conveyor.
Through the video, buyers can check biscuit transfer at the turning section, on-edge alignment, film tracking, rotary sealing, cutting accuracy, and final pillow bag appearance. For customers with limited workshop space or special line direction requirements, the video should show how the L-shape conveyor fits into the production flow.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications SI-150 SI-150D SI-150L SI-150DL
Bagging size range L 130-400 mm L 130-400 mm L 130-400 mm L 130-400 mm
W 30-140 mm W 30-140 mm W 30-140 mm W 30-140 mm
Product size range H 35-70 mm H 35-70 mm H 35-70 mm H 35-70 mm
Packing speed 30-110 bags/min 30-110 bags/min 30-110 bags/min 30-110 bags/min
Packing film width 90-400 mm 90-400 mm 90-400 mm 90-400 mm
Power supply 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz
General power 9.55 KW 7.85 KW 9.35 KW 8 KW
Machine body material Stainless steel Carbon steel Stainless steel Carbon steel
Machine weight 705 kg(without biscuit feeder) 448 kg(without biscuit feeder) 705 kg(without L-shape conveyor) 448 kg(without L-shape conveyor)
Machine dimensions 4754x1010x1638mm(without biscuit feeder) 4200x949x1479mm(without biscuit feeder)

4042x3228x1638mm

3714x3229x1479mm
Biscuit feeding With biscuit feeder for plain biscuits With L-shape conveyor for plain or sandwich biscuits
Packing material OPP, PVC, OPP/CPP, PT/PE etc.
  View Machine View Machine   View Machine

Application scenario

The SI-150L can be integrated into automatic trayless biscuit packaging solutions where the production line requires an L-shape product transfer layout.
It can support biscuit arranging, vertical on-edge feeding, pillow bag wrapping, and downstream packaging. Depending on the factory layout, Soontrue Group can provide biscuit feeding systems, turning conveyors, automatic infeed systems, cartoning machines, case packing equipment, and other secondary packaging solutions.
This model is suitable when the buyer needs both trayless biscuit packaging and a more flexible line direction.

Bag-shaped

Soontrue packaging machines support various flexible packaging formats to meet different product shapes, sizes and production requirements. From standard pillow bags to customized bag options, we provide reliable packaging solutions for diverse applications.

  • shape-4

    Pillow Bag with Euro Hole

    A pillow bag equipped with a reinforced Euro hole for hanging display. It provides a practical retail presentation option while maintaining the advantages of the pillow bag structure.

  • shape-3

    Linked Pillow Bag

    Multiple pillow bags are connected together through perforated sections, creating a convenient multipack format for retail, promotion, and bundled product applications.

  • shape-2

    Gusseted Pillow Bag

    A pillow bag with additional gusset folds on the side or bottom, providing increased capacity and better package stability. It is suitable for products requiring more volume or improved shelf appearance.

  • shape-1

    Pillow Bag Packaging

    The standard pillow bag features a simple and efficient sealing structure, making it one of the most widely used flexible packaging formats. It is suitable for a wide range of products across food, daily goods, and industrial applications.

FAQ

Q1: What is the SI-150L used for?

The SI-150L is used for trayless on-edge biscuit packaging, where biscuits are arranged vertically and packed into pillow bags without trays.

Q2: What is the difference between SI-150 and SI-150L?

The SI-150L includes an L-shape conveyor, while the SI-150 uses a straight-line layout. The L-shape conveyor is useful when the production line needs a turning or side-feeding arrangement.

Q3: Why choose an L-shape conveyor?

An L-shape conveyor helps adapt the machine to different workshop layouts, product flow directions, or upstream equipment positions.

Q4: Is the SI-150L stainless steel?

Yes. The SI-150L uses a stainless steel machine body, which provides cleaner appearance, better corrosion resistance, and easier daily cleaning.

Q5: What is the advantage of the 12-servo control system?

The 12-servo control system helps coordinate product transfer, film feeding, sealing, and cutting, supporting stable packaging performance with the L-shape conveyor.

Q6: What information should I provide before requesting a quotation?

Please provide biscuit size, stack quantity, target speed, bag size, film material, product photos or videos, workshop layout, and product flow direction.
