SI-150DL On Edge Biscuit Packing Machine with L-Shape Conveyor

  • Biscuits
  • Cookie
  • Soontrue-Group-SI150DL-On-edge-packaging-Machine

What is SI-150DL On Edge Biscuit Packing Machine?

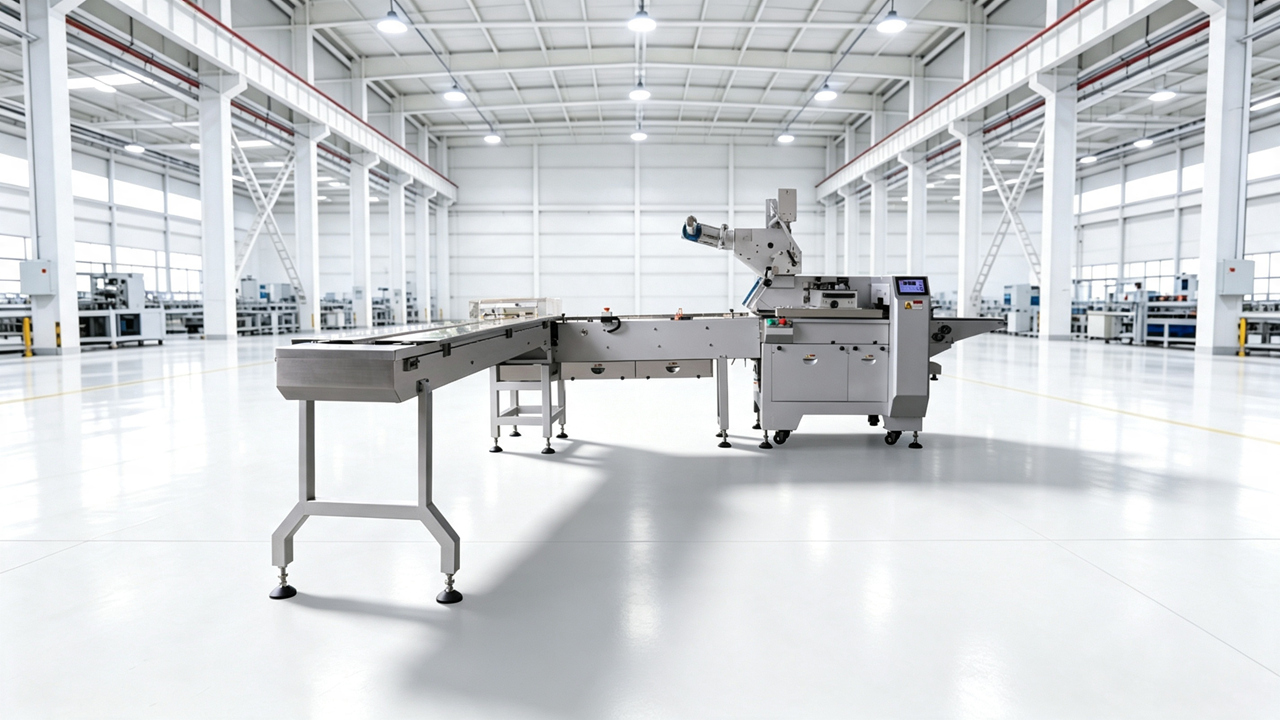

The SI-150DL On Edge Biscuit Packing Machine is an economical top film feed rotary biscuit flow wrapper with an L-shape conveyor. It is designed for trayless on-edge biscuit packaging where the buyer needs both a cost-effective configuration and a flexible production line layout.
Compared with the SI-150L, the SI-150DL uses a carbon steel machine body and an 8-servo control system. Compared with the SI-150D, it adds an L-shape conveyor, which helps adapt the packaging line to workshop layouts that require product turning or side feeding before wrapping.
As part of Soontrue Group's biscuit packaging machine series, the SI-150DL is suitable for biscuit manufacturers who want to reduce tray usage, improve automation, control equipment cost, and fit the machine into a more flexible line layout.
Before requesting a quotation, buyers can prepare biscuit dimensions, stack quantity, line direction, available space, target speed, film material, bag size, and product videos. Soontrue engineers can then evaluate whether the SI-150DL is the right economical L-shape solution.



Soontrue-Group-SI150-On-edge-packaging-Machine

Special Feature Section

  • High-Speed Operation

    01.

    The SI-150DL supports continuous on-edge biscuit packaging with an economical machine configuration and flexible L-shape product transfer.

    high-speed-flow-pack

  • Rotary Motion End Sealing

    02.

    The rotary motion end sealing system supports continuous sealing and cutting for trayless biscuit pillow bag packaging.

    Rotary-End-Sealing

  • Wide Range of Bagging Sizes

    03.

    The SI-150DL can support different biscuit stack lengths and pillow bag formats within its applicable range. Final bag size should be confirmed based on biscuit size, stack count, and line layout.

    Wide-Range-of-Bagging-Sizes

  • Durable Construction

    04.

    The SI-150DL uses a carbon steel machine body, making it a cost-effective option for biscuit manufacturers who need trayless packaging with an L-shape conveyor.

    specification-bg

  • Servo Control System

    05.

    The 8-servo control system coordinates biscuit transfer, film feeding, sealing, and cutting, supporting stable operation in an economical L-shape layout.

    specification-bg

Product video

This section can show the SI-150DL packaging biscuits on edge with an L-shape conveyor.
Through the video, buyers can check biscuit turning transfer, vertical alignment, film feeding, rotary sealing, cutting accuracy, and final pillow bag appearance. For customers comparing different layouts, the video should show how the L-shape conveyor helps connect upstream biscuit handling with the packaging machine.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications SI-150 SI-150D SI-150L SI-150DL
Bagging size range L 130-400 mm L 130-400 mm L 130-400 mm L 130-400 mm
W 30-140 mm W 30-140 mm W 30-140 mm W 30-140 mm
Product size range H 35-70 mm H 35-70 mm H 35-70 mm H 35-70 mm
Packing speed 30-110 bags/min 30-110 bags/min 30-110 bags/min 30-110 bags/min
Packing film width 90-400 mm 90-400 mm 90-400 mm 90-400 mm
Power supply 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz
General power 9.55 KW 7.85 KW 9.35 KW 8 KW
Machine body material Stainless steel Carbon steel Stainless steel Carbon steel
Machine weight 705 kg(without biscuit feeder) 448 kg(without biscuit feeder) 705 kg(without L-shape conveyor) 448 kg(without L-shape conveyor)
Machine dimensions 4754x1010x1638mm(without biscuit feeder) 4200x949x1479mm(without biscuit feeder)

4042x3228x1638mm

3714x3229x1479mm
Biscuit feeding With biscuit feeder for plain biscuits With L-shape conveyor for plain or sandwich biscuits
Packing material OPP, PVC, OPP/CPP, PT/PE etc.
  View Machine View Machine View Machine

Application scenario

The SI-150DL can be used in economical trayless biscuit packaging solutions where an L-shape conveyor is needed.
It can support on-edge biscuit arranging, turning transfer, pillow bag wrapping, and downstream packaging. Depending on the production line, Soontrue Group can provide biscuit feeding systems, automatic infeed equipment, cartoning machines, case packers, and other secondary packaging systems.
This model is suitable for buyers who need a trayless biscuit packing machine with a flexible layout but want to control equipment investment.

Bag-shaped

Soontrue packaging machines support various flexible packaging formats to meet different product shapes, sizes and production requirements. From standard pillow bags to customized bag options, we provide reliable packaging solutions for diverse applications.

  • shape-4

    Pillow Bag with Euro Hole

    A pillow bag equipped with a reinforced Euro hole for hanging display. It provides a practical retail presentation option while maintaining the advantages of the pillow bag structure.

  • shape-3

    Linked Pillow Bag

    Multiple pillow bags are connected together through perforated sections, creating a convenient multipack format for retail, promotion, and bundled product applications.

  • shape-2

    Gusseted Pillow Bag

    A pillow bag with additional gusset folds on the side or bottom, providing increased capacity and better package stability. It is suitable for products requiring more volume or improved shelf appearance.

  • shape-1

    Pillow Bag Packaging

    The standard pillow bag features a simple and efficient sealing structure, making it one of the most widely used flexible packaging formats. It is suitable for a wide range of products across food, daily goods, and industrial applications.

FAQ



Q1: What is the SI-150DL used for?

The SI-150DL is used for trayless on-edge biscuit packaging with an L-shape conveyor layout.

Q2: What is the difference between SI-150DL and SI-150D?

Both are economical models with carbon steel machine bodies. The SI-150DL includes an L-shape conveyor, while the SI-150D uses a straight-line layout.

Q3: What is the difference between SI-150DL and SI-150L?

The SI-150L uses a stainless steel body and 12 servos, while the SI-150DL uses a carbon steel body and 8 servos. SI-150DL is the more economical L-shape version.

Q4: Why choose an L-shape conveyor?

An L-shape conveyor helps fit the packaging machine into production lines where the product flow needs to turn before entering the wrapping section.

Q5: Is the SI-150DL suitable for trayless biscuit packaging?

Yes. The SI-150DL is designed for on-edge biscuit packaging without trays.

Q6: What information should I provide before requesting a quotation?

Please provide biscuit size, stack quantity, bag size, film material, target speed, product photos or videos, line direction, workshop layout, and budget requirements.
