SI-150 on edge biscuit packing machine

  • Biscuits
  • Cookie
  • SI-150-on-edge-biscuit-packing-machine

What is SI-150 On Edge Biscuit Packing Machine?

The SI-150 On Edge Biscuit Packing Machine is a top film feed rotary flow wrapping machine designed for trayless biscuit packaging. It is used when biscuits are arranged vertically and fed into the packaging machine on edge, without using plastic or paper trays.
As part of Soontrue Group's biscuit packaging machine series, the SI-150 is built for manufacturers who need automatic biscuit handling, stable on-edge feeding, and clean pillow bag packaging. The machine helps reduce tray material use while keeping biscuits aligned during feeding, wrapping, sealing, and cutting.
This model uses a 14-servo control system and a stainless steel machine body, making it suitable for biscuit production lines that require higher control accuracy, better hygiene appearance, and stronger long-term operation. With top film feeding and rotary motion end sealing, the SI-150 is positioned as the higher-configuration model in this on-edge biscuit packing series.
Before requesting a quotation, buyers can prepare biscuit dimensions, stack quantity, packing format, target speed, film material, and line layout. Soontrue engineers can then evaluate whether the SI-150 is suitable for the biscuit size, feeding direction, and automation requirements.

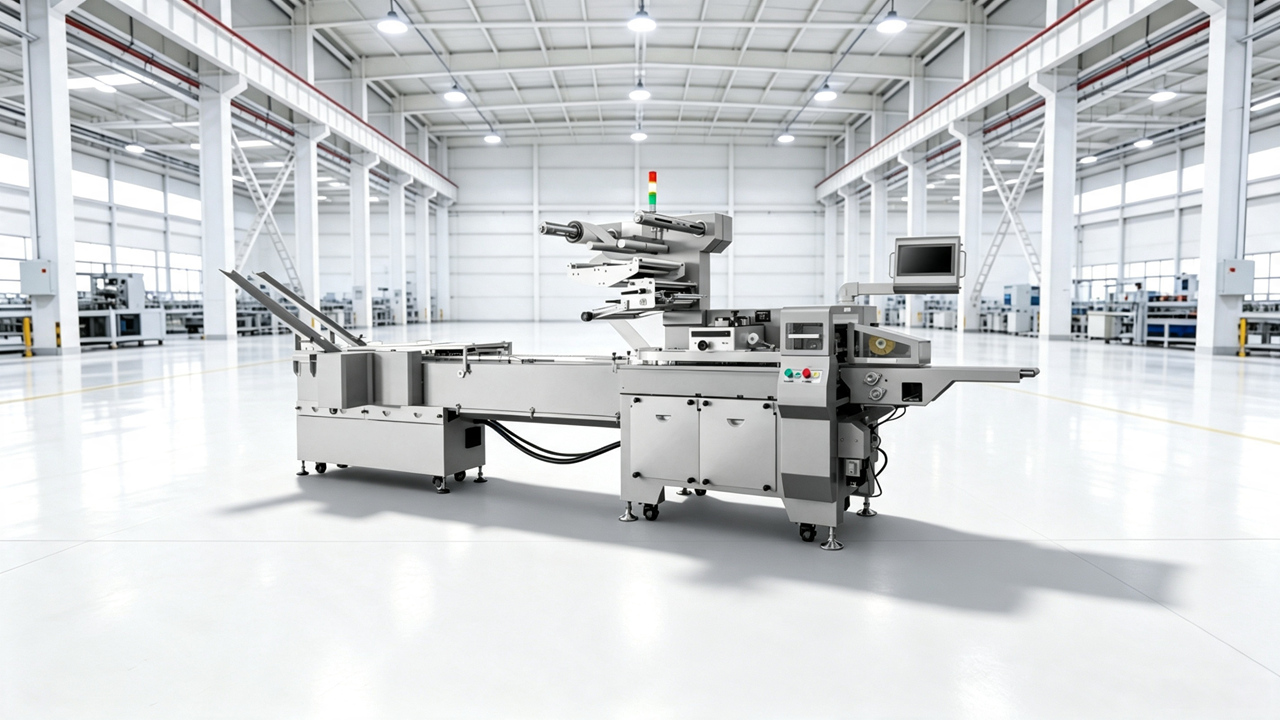

Soontrue-Group-SI150-On-edge-packaging-Machine

Special Feature Section

  • High-Speed Operation

    01.

    The SI-150 is designed for continuous on-edge biscuit packaging, helping biscuit manufacturers improve packing efficiency while reducing manual arranging and tray handling.

    high-speed-flow-pack

  • Rotary Motion End Sealing

    02.

    The rotary motion end sealing system supports continuous sealing and cutting, helping maintain stable pillow bag appearance for trayless biscuit packaging.

    Rotary-End-Sealing

  • Wide Range of Bagging Sizes

    03.

    The SI-150 can support different biscuit stack lengths and pillow bag formats within the machine's applicable packaging range. Final bag size should be confirmed based on biscuit dimensions, arrangement method, and film material.

    Wide-Range-of-Bagging-Sizes

  • Durable Construction

    04.

    The SI-150 uses a stainless steel machine body, making it suitable for biscuit production environments that require a cleaner machine appearance, better corrosion resistance, and easier daily cleaning.

    specification-bg

  • Servo Control System

    05.

    The 14-servo control system improves coordination between biscuit feeding, film feeding, sealing, and cutting, helping maintain stable product spacing and consistent pillow bag quality.

    specification-bg

Product video

This section can show the SI-150 packaging biscuits in an on-edge arrangement without trays.
Through the video, buyers can check biscuit alignment, vertical feeding stability, film tracking, rotary sealing rhythm, cutting accuracy, and final pillow bag appearance. For trayless biscuit packaging, the video should clearly show how biscuits remain upright and orderly before entering the forming area.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications SI-150 SI-150D SI-150L SI-150DL
Bagging size range L 130-400 mm L 130-400 mm L 130-400 mm L 130-400 mm
W 30-140 mm W 30-140 mm W 30-140 mm W 30-140 mm
Product size range H 35-70 mm H 35-70 mm H 35-70 mm H 35-70 mm
Packing speed 30-110 bags/min 30-110 bags/min 30-110 bags/min 30-110 bags/min
Packing film width 90-400 mm 90-400 mm 90-400 mm 90-400 mm
Power supply 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz
General power 9.55 KW 7.85 KW 9.35 KW 8 KW
Machine body material Stainless steel Carbon steel Stainless steel Carbon steel
Machine weight 705 kg(without biscuit feeder) 448 kg(without biscuit feeder) 705 kg(without L-shape conveyor) 448 kg(without L-shape conveyor)
Machine dimensions 4754x1010x1638mm(without biscuit feeder) 4200x949x1479mm(without biscuit feeder)

4042x3228x1638mm

3714x3229x1479mm
Biscuit feeding With biscuit feeder for plain biscuits With L-shape conveyor for plain or sandwich biscuits
Packing material OPP, PVC, OPP/CPP, PT/PE etc.
    View Machine View Machine View Machine

Application scenario

Bag-shaped

Soontrue packaging machines support various flexible packaging formats to meet different product shapes, sizes and production requirements. From standard pillow bags to customized bag options, we provide reliable packaging solutions for diverse applications.

  • shape-4

    Pillow Bag with Euro Hole

    A pillow bag equipped with a reinforced Euro hole for hanging display. It provides a practical retail presentation option while maintaining the advantages of the pillow bag structure.

  • shape-3

    Linked Pillow Bag

    Multiple pillow bags are connected together through perforated sections, creating a convenient multipack format for retail, promotion, and bundled product applications.

  • shape-2

    Gusseted Pillow Bag

    A pillow bag with additional gusset folds on the side or bottom, providing increased capacity and better package stability. It is suitable for products requiring more volume or improved shelf appearance.

  • shape-1

    Pillow Bag Packaging

    The standard pillow bag features a simple and efficient sealing structure, making it one of the most widely used flexible packaging formats. It is suitable for a wide range of products across food, daily goods, and industrial applications.

FAQ

Q1: What products can the SI-150 On Edge Biscuit Packing Machine pack?

The SI-150 is mainly designed for on-edge biscuit packaging, where biscuits are arranged vertically and packed without trays.

Q2: What does "on edge biscuit packing" mean?

On edge biscuit packing means the biscuits are standing vertically during feeding and packaging, instead of lying flat or being placed in trays.

Q3: Is the SI-150 suitable for trayless biscuit packaging?

Yes. The SI-150 is designed for trayless biscuit packaging, helping reduce tray material use and improve packaging automation.

Q4:What is the advantage of the 14-servo control system?

The 14-servo control system improves coordination between biscuit feeding, film feeding, sealing, and cutting. This helps maintain stable biscuit spacing and consistent pillow bag quality.

Q5: Why does the SI-150 use a stainless steel body?

The stainless steel machine body provides a cleaner appearance, better corrosion resistance, and easier cleaning for biscuit production environments.

Q6: What information should I provide before requesting a quotation?

Please provide biscuit size, biscuit shape, stack quantity, target packing speed, bag size, film material, product photos or videos, and the required line layout.
