Vertical Packaging Machine with Volumetric Cup Filler

  • Snack Food
  • Rice & Grain
  • Salt & Sugar
  • Nut

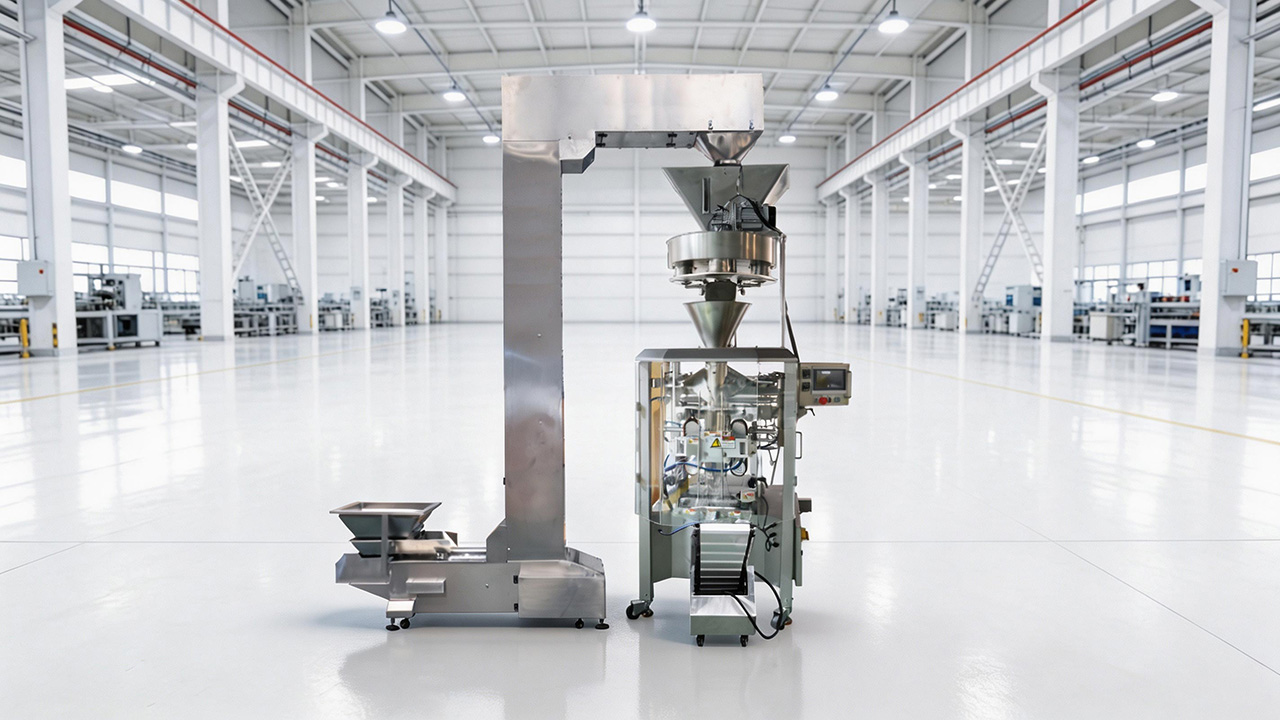

  • Soontrue-Group-Vertical-Packaging-Machine-with-Volumetric-Cup-Filler

What is Vertical Packaging Machine with Volumetric Cup Filler?

A Vertical Packaging Machine with Volumetric Cup Filler is an automatic granule packaging system that uses cup-based volumetric dosing with a VFFS machine. It completes product feeding, volume measuring, filling, bag forming, sealing, and cutting.
The volumetric cup filler measures product by volume rather than by weight. It is suitable for free-flowing granules with stable bulk density and relatively consistent particle size. Typical products include rice, sugar, salt, beans, seeds, grains, small pellets, granular seasoning, and similar dry granular materials.
Compared with a multihead weigher, a volumetric cup filler has a simpler structure, easier operation, and lower investment cost. It is a practical choice when the product is stable enough for volume-based filling and the required tolerance is not as strict as weight-based combination weighing. However, if product density changes frequently or high weight accuracy is required, a multihead weigher may be more suitable.
As part of Soontrue Group’s granule packaging solutions, this system can be combined with a bucket elevator, volumetric cup filler, vertical packaging machine, finished bag conveyor, checkweigher, metal detector, cartoning machine, or case packing machine. The VFFS model should be selected according to target volume or weight, bag size, film width, and packing speed.
Before requesting a quotation, buyers should provide product type, bulk density, particle size, target weight or volume, acceptable filling tolerance, bag size, film material, required speed, and product samples or videos.



Soontrue-Group-Vertical-Packaging-Machine-with-Volumetric-Cup-Filler

Special Feature Section

  • Stable Volumetric Filling

    01.

    The cup filler measures product by volume, making it suitable for free-flowing granules with stable density and consistent particle size.

    specification-bg

  • Simple and Practical Structure

    02.

    Compared with multihead weighing systems, volumetric cup filling is simpler to operate and maintain. It is a practical choice for granule products where high weighing precision is not the primary requirement.

    specification-bg

  • Wide Range of Bagging Sizes

    03.

    The system can be matched with different vertical packaging machine models according to bag length, bag width, film width, and target filling volume.

    Width-Bag-Packaging

  • Integrated Granule Packaging Line

    04.

    The system can connect with product elevators, cup fillers, VFFS machines, conveyors, checkweighers, metal detectors, cartoning machines, and case packers.

    specification-bg

  • Servo Control System

    05.

    Servo control improves film pulling accuracy, bag length control, sealing synchronization, and packaging stability during continuous granule packaging.

    specification-bg

Product video

This section can show product feeding, cup measuring, filling, bag forming, sealing, and cutting.
Through the video, buyers can check product flow into the cup filler, filling stability, bag forming quality, sealing accuracy, cutting performance, and final bag appearance. For granules with different density or particle size, the video helps evaluate whether volumetric dosing is suitable.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications ZL-180P ZL-180PH ZL-200P ZL-200PH ZL-270P ZL-300P
Bagging size range L 50-190 mm L 50-190 mm L 50-300 mm L 50-275 mm L 80-400 mm L 80-400 mm
W50-150 mm W50-150 mm W90-200 mm W90-200 mm W150-275 mm W200-295 mm
Packing speed 20-100 bags/min 20-120 bags/min 20-90 bags/min 20-120 bags/min 15-60 bags/min 15-60 bags/min
Packing film width 100-320 mm 100-320 mm 200-420 mm 200-420 mm 320-570 mm 420-620 mm
Power supply 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz
End sealing Open-close motion Continuous motion Open-close motion Continuous motion Open-close motion Open-close motion
General power 3.9 KW 4.65 KW 3.9 KW 4.9 KW 5.0 KW 4.9 KW
Machine weight 220 kg 250 kg 240 kg 280 kg 340 kg 386 kg
Machine dimensions 1112x1170x1460mm 1200x1170x1460mm 1300x1170x1582mm 1427x1170x1562mm 1730x1310x1620mm 1740x1380x1620mm
Packing material PP, CPP, PVC, PS, EVA, PET, PVDC/PVC, OPP/CPP etc.
  View Machine View Machine View Machine View Machine View Machine View Machine

Application scenario

A vertical packaging machine with volumetric cup filler can be used for automatic granule packaging lines.
A typical line can include a bucket elevator, volumetric cup filler, VFFS machine, finished bag conveyor, checkweigher, metal detector, cartoning machine, and case packing system. Soontrue Group can configure the system according to product density, target volume, bag size, speed, and factory layout.
This system is suitable for rice, sugar, salt, beans, seeds, grains, pellets, granular seasoning, and other free-flowing granules.

Bag-shaped

Soontrue packaging machines support various flexible packaging formats to meet different product shapes, sizes and production requirements. From standard pillow bags to customized bag options, we provide reliable packaging solutions for diverse applications.

  • shape-1

    Pillow Bag Packaging

    The standard pillow bag features a simple and efficient sealing structure, making it one of the most widely used flexible packaging formats. It is suitable for a wide range of products across food, daily goods, and industrial applications.

  • shape-2

    Gusseted Pillow Bag

    A pillow bag with additional gusset folds on the side or bottom, providing increased capacity and better package stability. It is suitable for products requiring more volume or improved shelf appearance.

  • shape-3

    Linked Pillow Bag

    Multiple pillow bags are connected together through perforated sections, creating a convenient multipack format for retail, promotion, and bundled product applications.

  • shape-4

    Pillow Bag with Euro Hole

    A pillow bag equipped with a reinforced Euro hole for hanging display. It provides a practical retail presentation option while maintaining the advantages of the pillow bag structure.

FAQ

Q1: What products are suitable for a vertical packaging machine with volumetric cup filler?

It is suitable for free-flowing granules such as rice, sugar, salt, beans, seeds, grains, pellets, and granular seasoning.

Q2: When should I choose a cup filler instead of a multihead weigher?

Choose a cup filler when the product has stable density, good flowability, and the filling tolerance is acceptable. Choose a multihead weigher when higher weight accuracy is required.

Q3: Is volumetric cup filling suitable for powder?

It is usually better for granules than powder. For powder products, an auger filler is generally more suitable.

Q4: What affects filling accuracy?

Filling accuracy depends on product density, particle size, flowability, cup volume, target weight, and filling speed.

Q5:Can this system be used for different bag sizes?

Yes. The VFFS model and cup filling system should be selected according to bag size, target filling volume, and production speed.

Q6: What information should I provide before requesting a quotation?

Please provide product type, bulk density, target weight or volume, bag size, film material, required speed, and acceptable filling tolerance.
