TS-40 Sliced Toast Bagging Machine

  • Bread
  • Toast
  • Bakery
  • Soontrue-group-TS-40-Sliced-Toast-Bagging-Machine

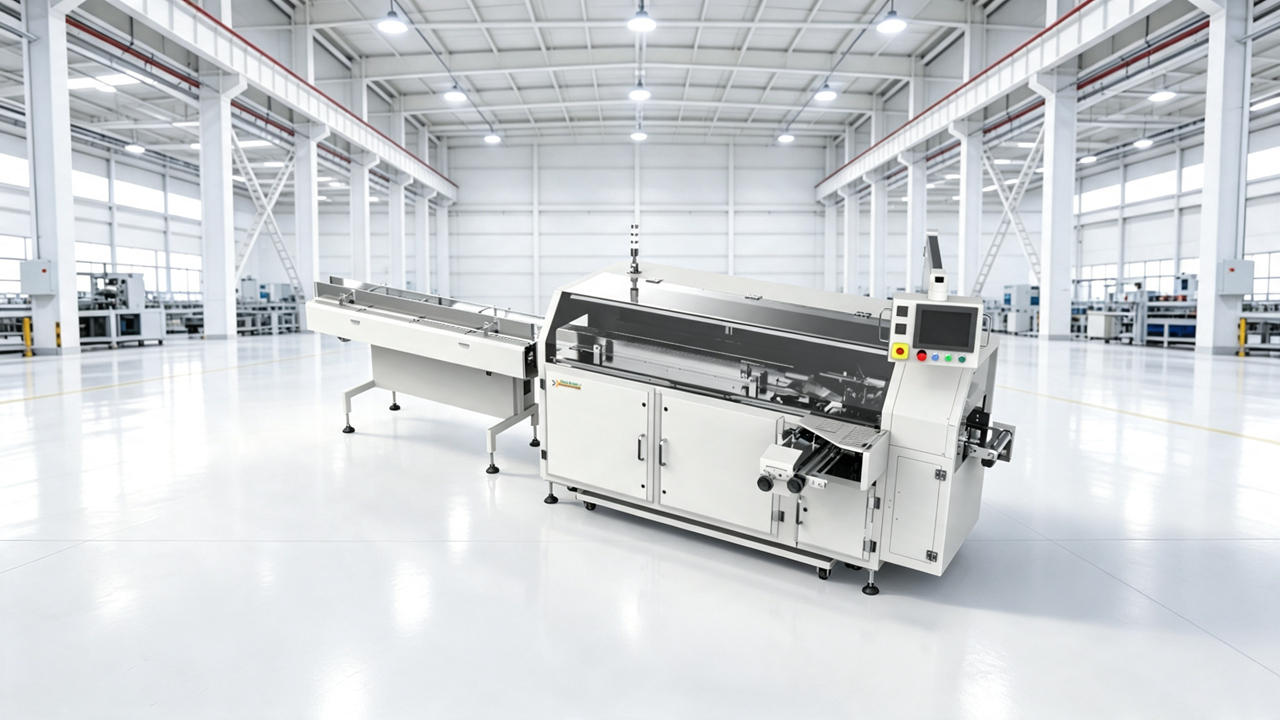

What is TS-40 Sliced Toast Bagging Machine?

The TS-40 Sliced Toast Bagging Machine is an automatic bagging machine designed for sliced toast and sliced bread packaging. It is used after toast slicing and product arrangement, helping bakeries place sliced toast into PE bags automatically instead of relying on manual bagging.
Unlike a general horizontal bagging machine for regular blocks or grouped products, the TS-40 is built around the handling requirements of sliced toast. Sliced bread is soft, easy to deform, and needs to stay aligned before entering the bag. The machine must open the bag smoothly, guide the sliced toast into the bag without damaging the product shape, and keep the finished package neat for retail display.
As part of Soontrue Group's bakery packaging solutions, the TS-40 is suitable for sliced toast products with a toast length of 100-300 mm, toast width of 70-150 mm, and toast height of 50-120 mm. Its packing speed range is 25-40 pouches/min, depending on product size, bag material, feeding stability, and production conditions.
The TS-40 works with PE packaging bags. According to the catalog specification, the applicable package material is single-layer PE with a thickness of 40-60 μm. This makes it suitable for common sliced toast bagging applications where flexible bread bags are used to protect freshness and provide a clean retail package.
For bakeries, the main value of the TS-40 is not only speed. It helps reduce manual handling, improve bagging consistency, keep sliced toast better aligned, and support a more automated bakery packaging line. Before requesting a quotation, buyers should provide toast dimensions, slice count or loaf size, bag size, PE bag material, required output, upstream slicing/feeding method, and downstream closing or conveying requirements.



Soontrue-group-TS-40-Sliced-Toast-Bagging-Machine

Special Feature Section

  • Designed for Sliced Toast Bagging

    01.

    The TS-40 is designed specifically for sliced toast and sliced bread products. These products require more careful handling than hard blocks or rigid items because the slices can shift, deform, or lose alignment during transfer.

    specification-bg

  • Automatic Bag Opening and Product Inserting

    02.

    The machine opens the PE bag and inserts the sliced toast automatically. Stable bag opening is critical because sliced toast has a relatively large contact surface and can easily catch on the bag mouth if the bag is not opened properly.

    specification-bg

  • Suitable for Standard Sliced Toast Size Range

    03.

    The TS-40 supports sliced toast products within the catalog range of 100-300 mm in length, 70-150 mm in width, and 50-120 mm in height. This makes it suitable for many standard toast loaf formats and sliced bread products.

    specification-bg

  • Compatible with PE Bread Bags

    04.

    The TS-40 is designed for PE bagging applications. The catalog lists single-layer PE packaging material with a thickness of 40-60 μm.

    specification-bg

  • Servo Control and Stainless Steel Machine Body

    05.

    The TS-40 uses servo control to support stable bagging operation and product transfer. Servo control helps improve movement coordination during continuous sliced toast bagging.

    specification-bg

Product video

This section can show the TS-40 running sliced toast bagging.
Through the video, buyers should check how sliced toast enters the machine, whether the slices remain aligned, how the bag opens, how the toast is inserted, and whether the finished bag keeps a neat shape. For sliced toast, the key viewing point is not only speed, but whether the product stays square, clean, and undamaged during bagging.
The video should also show the stability of PE bag opening. Since bread bags are flexible, poor bag opening can cause product collision, folded bag mouths, or uneven finished packages. Buyers should watch whether the machine opens the bag fully before the toast enters.
If the TS-40 is shown as part of a bakery line, the video should also show upstream toast slicing or feeding and downstream finished bag conveying. This helps buyers understand how the machine can fit into a complete sliced toast packaging process.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications TS-40
Bagging size range L 100-300 mm
W 70-150 mm
H 50-120 mm
packing speed 25-40 pouches/min
Power supply 380V/3Ph/50Hz
General power 9 KW
Machine weight 1500 kg
Machine dimensions 4625x1800x1811mm
Package material Thickness of single layer: 40-60 um PE

Application scenario

The TS-40 can be used as the main bagging machine in an automatic sliced toast packaging line.
A typical line may include toast slicing, product arranging, sliced toast feeding, TS-40 automatic bagging, bag closing or sealing process depending on configuration, finished product conveying, checkweighing, metal detection, cartoning, case packing, and palletizing.
For bakery factories, the most important line design points are toast alignment, slice stability, bag material compatibility, and finished package handling. Soontrue Group can help configure the line according to toast size, bag size, output requirement, factory layout, and downstream packaging process.
This machine is suitable for bakeries that want to reduce manual bread bagging, improve consistency, and build a more automated sliced toast packaging process.

FAQ

Q1: What is the TS-40 Sliced Toast Bagging Machine used for?

The TS-40 is used for automatic bagging of sliced toast and sliced bread into PE bags. It helps reduce manual bagging and improve packaging consistency in bakery production lines.

Q2: What toast size can the TS-40 handle?

According to the catalog specification, the TS-40 supports toast length from 100-300 mm, toast width from 70-150 mm, and toast height from 50-120 mm.

Q3: What is the packing speed of the TS-40?

The catalog packing speed is 25-40 pouches/min. Actual speed depends on toast size, bag size, bag material, feeding stability, and production conditions.

Q4: What packaging material is suitable for the TS-40?

The TS-40 is suitable for single-layer PE bag material with a catalog thickness range of 40-60 μm. Buyers should provide bag samples for confirmation before final machine configuration.

Q5: How is TS-40 different from TD200A or TD300A?

TD200A and TD300A are general horizontal bagging machines for regular-shaped or grouped products. TS-40 is more specialized for sliced toast and sliced bread bagging, where product softness, slice alignment, and PE bread bag opening are key factors.

Q6: Can the TS-40 connect with a toast slicing machine?

Yes, it can be used in a sliced toast packaging line with upstream slicing and feeding equipment. The actual layout should be confirmed according to toast size, slicing method, feeding direction, and production speed.

Q7: What should I check before choosing the TS-40?

Buyers should check toast length, width, height, slice stability, loaf softness, bag size, PE bag thickness, bag opening performance, required speed, and downstream packaging requirements.

Q8: What information should I provide before requesting a quotation

Please provide toast photos or videos, toast dimensions, slice count or loaf size, bag size, bag material, target output, upstream slicing/feeding method, and whether downstream closing, conveying, cartoning, or case packing is required.
