TD200L Vertical Feeding Bagging Machine

  • Snack Food
  • Secondary packaging

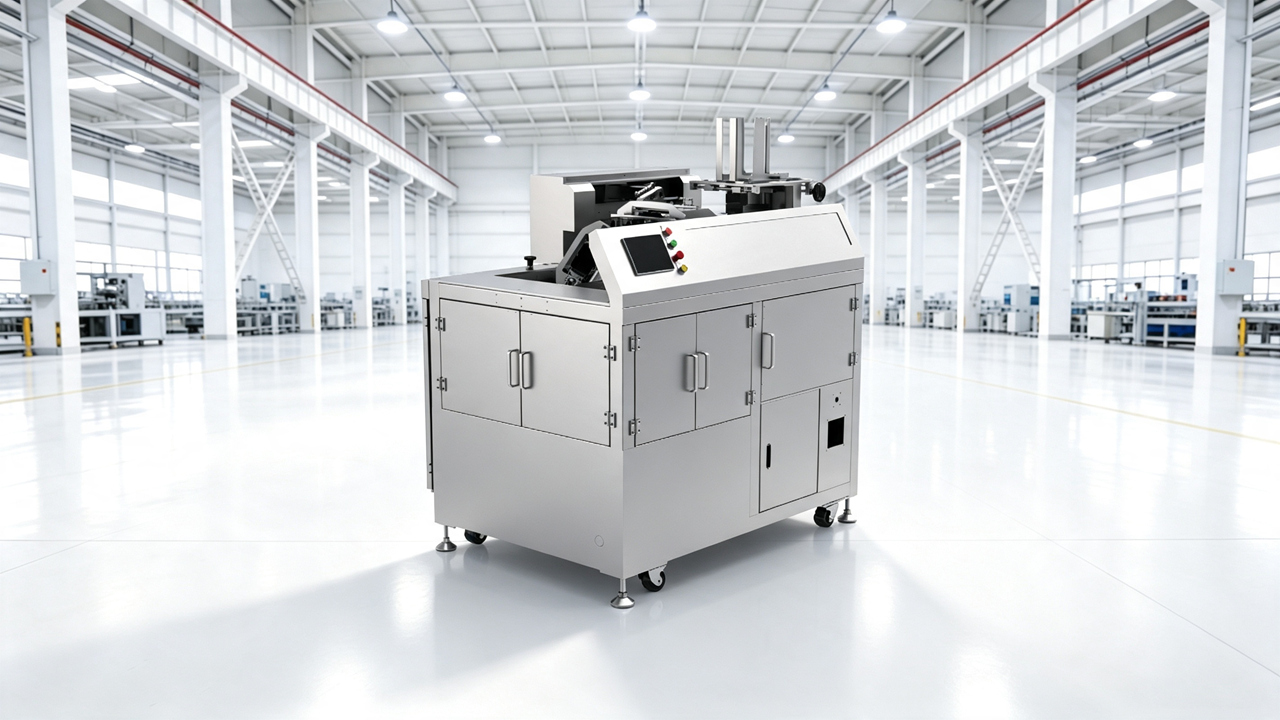

  • Soontrue-Group-TD200L-Vertical-Feeding-Bagging-Machine

What is TD200L Vertical Feeding Bagging Machine?

The TD200L Vertical Feeding Bagging Machine is an automatic bagging machine designed for products that enter the bag vertically from above. Unlike TD200A and TD300A, which feed products horizontally into the bag, the TD200L is used with a dosing or weighing system so that measured products can be discharged into the bag through a vertical feeding path.
This model is suitable for products that need to be dosed or weighed before bagging. It can work with a volumetric cup filler, multihead weigher, or other dosing systems depending on product characteristics. The product is measured first, then falls vertically into the opened bag, and the bag is sealed and discharged.
As part of Soontrue Group's automatic bagging machine solutions, the TD200L fills the gap between horizontal bagging machines and standard vertical packaging machines. It does not follow the same logic as TD200A or TD300A. Instead of pushing a shaped product into the bag from the side, the TD200L is designed for products that can be discharged vertically into the bag after weighing or dosing.
The TD200L is suitable for granules, small solid products, snacks, nuts, candies, small food pieces, and other products that can be handled by a volumetric cup filler, multihead weigher, or similar dosing equipment. The correct filling system should be selected according to product size, product flowability, target weight, filling accuracy, and required speed.
Before requesting a quotation, buyers should provide product type, product size, target weight, required accuracy, bag size, bag material, preferred weighing or dosing system, product photos or videos, and whether the line needs upstream feeding or downstream cartoning and case packing.



Soontrue-Group-TD200L-Vertical-Feeding-Bagging-Machine

Special Feature Section

  • Vertical Product Feeding

    01.

    The TD200L uses vertical feeding, meaning the product enters the bag from above after being measured by a dosing or weighing system. This is different from TD200A and TD300A, where shaped products are pushed horizontally into the bag.

    specification-bg

  • Compatible with Weighing and Dosing Systems

    02.

    The TD200L can work with volumetric cup fillers, multihead weighers, or other dosing systems. A volumetric cup filler is suitable for free-flowing products with stable volume, while a multihead weigher is better for products requiring higher weighing accuracy.

    specification-bg

  • Automatic Bag Opening and Filling

    03.

    The machine opens the bag and receives product from the vertical feeding system. Stable bag opening is important because the product must enter the bag cleanly without spillage or product loss.

    specification-bg

  • Suitable for Dosed or Weighed Products

    04.

    The TD200L is suitable for products that need controlled filling before bagging. This includes granules, snacks, nuts, candies, small food pieces, and similar products.

    specification-bg

  • PLC Control and Line Synchronization

    05.

    The control system coordinates bag opening, product discharge, filling, sealing, and output. When connected with a weighing or dosing system, synchronization between the dosing unit and bagging machine is critical.

    specification-bg

Product video

This section can show the TD200L working with a volumetric cup filler or multihead weigher.
Through the video, buyers should check how the dosing system measures the product, how the product is discharged vertically, whether the bag opens fully before filling, whether the product enters cleanly, and whether the bag is sealed properly after filling.
For products such as snacks, nuts, candies, or granules, the video should show whether product breakage, bouncing, or spillage is controlled during vertical discharge. If a multihead weigher is used, buyers should also observe weighing rhythm and discharge timing.
For buyers comparing TD200L with TD200A or TD300A, the video should clearly show the difference between vertical feeding and horizontal product inserting.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications TD-200L
Bagging size range L 100-250 mm
W 40-150 mm
H 20-90 mm
packing speed 15-40 pouches/min
Power supply 220V/1Ph/50Hz
General power 9 KW
Machine weight 500 kg
Machine dimensions 1420x988x1500mm
Package material OPP/CPP, PT/PE, KOP/CPP aluminum laminated film

Application scenario

The TD200L can be used in automatic bagging lines that require product dosing or weighing before bagging.
A typical line may include a product elevator, volumetric cup filler or multihead weigher, TD200L vertical feeding bagging machine, finished bag conveyor, checkweigher, metal detector, cartoning machine, case packing machine, and palletizing system. For free-flowing granules, a cup filler may be enough. For products requiring higher accuracy, a multihead weigher may be more suitable.
Soontrue Group can configure the TD200L according to product type, target weight, bag size, required accuracy, and factory layout. The system can also be connected with downstream packaging equipment for a complete automatic line.
This model is suitable for buyers who need a bagging machine that works with weighing or dosing equipment, rather than a horizontal product-pushing bagging machine.

Bag-shaped

Soontrue packaging machines support various flexible packaging formats to meet different product shapes, sizes and production requirements. From standard pillow bags to customized bag options, we provide reliable packaging solutions for diverse applications.

  • soontrue-group-zipper -premade-pouch

    Zipper Premade Pouches

    Zipper pouches feature a resealable zipper that allows consumers to open and close the package repeatedly while helping maintain product freshness. They are commonly used for snacks, coffee, nuts, pet food, powders, and other products requiring convenient reclosure.

  • soontrue-group-Flat-bottom-doypack

    Flat Bottom Doypack

    Flat bottom doypacks feature a stable flat base that allows the pouch to stand upright while providing a structured, premium appearance. They are commonly used for coffee, snacks, pet food, nuts, powders, and other products that benefit from strong shelf presentation.

  • Premade Pouch Packaging

    Premade Pouch Stand-up Pouches Packaging

    Stand-up pouches feature a bottom gusset that allows the package to stand upright on shelves, combining strong product presentation with efficient use of packaging material. They are widely used for snacks, coffee, pet food, powders, liquids, and other consumer products.

FAQ

Q1: What is the TD200L Vertical Feeding Bagging Machine used for?

The TD200L is used for automatic bagging of products that need vertical feeding after dosing or weighing. It can work with a volumetric cup filler, multihead weigher, or other dosing systems.

Q2: How is TD200L different from TD200A and TD300A?

TD200L uses vertical feeding, where the product falls into the bag from above after dosing or weighing. TD200A and TD300A are horizontal bagging machines where the product enters the bag from the side.

Q3: Does TD200L need a weighing or dosing system?

Yes. TD200L is typically configured with a volumetric cup filler, multihead weigher, or other dosing system depending on product type and accuracy requirement.

Q4: When should I use a volumetric cup filler with TD200L?

A volumetric cup filler is suitable for free-flowing products with stable volume and acceptable filling tolerance, such as some granules or small solid products.

Q5: When should I use a multihead weigher with TD200L?

A multihead weigher is better when higher weighing accuracy is required or when the product value, target weight, or portion consistency is important.

Q6: What products are suitable for TD200L?

TD200L is suitable for granules, snacks, nuts, candies, small food pieces, and other products that can be dosed or weighed and then discharged vertically into a bag.

Q7: What information should I provide before requesting a quotation?

Please provide product type, product size, target weight, required accuracy, bag size, bag material, preferred dosing system, target speed, product photos or videos, and full-line automation requirements.
