SP-WS0810 3+1-Axis Robotic Sorting Machine

  • Layer-Forming Case Packaging
  • Secondary packaging
  • Soontrue-Group-SP-WS0810-3+1-Axis-Robotic-Sorting-Machine

What is SP-WS0810 3+1-Axis Robotic Sorting Machine?

The SP-WS0810 3+1-Axis Robotic Sorting Machine is a robotic product handling system used before the packaging machine to arrange, stack, sort, orient, and transfer products into the required infeed pattern. It helps convert irregular, continuous, or loosely arranged incoming products into a stable product flow for downstream packaging.
In many packaging lines, products do not always arrive in the exact position, direction, spacing, or layer format required by the packaging machine. If the product infeed is unstable, the packaging machine may experience missed feeding, poor alignment, product collision, or inconsistent packaging quality. The SP-WS0810 is designed to solve this problem by using a 3+1-axis robotic handling structure to organize products before they enter the packaging process.
The machine can be used for product arranging, stacking, layering, sorting, and directional adjustment. It is especially useful when products need to be grouped, layered, separated into lanes, rotated, or placed into a fixed feeding position before entering a flow wrapping machine, cartoning machine, bagging machine, secondary packaging machine, or other automatic packaging equipment.
The 3+1-axis structure allows the robot to perform controlled pick-and-place movements while also supporting product orientation adjustment when required. The three main axes handle product movement and positioning, while the additional axis can be used for rotation or direction adjustment depending on the product and application.
The SP-WS0810 is not a palletizing robot and should not be described as a six-axis robotic arm. Its main value is pre-packaging product handling: arranging products before packaging, stacking products into the required layer format, sorting products into the correct sequence or lane, and feeding the packaging machine in a more stable rhythm.
Before requesting a quotation, buyers should provide product size, product weight, product shape, surface condition, packaging status, incoming direction, required stacking or sorting pattern, target speed, packaging machine type, available layout space, and product videos. Product samples are recommended when the product is soft, fragile, irregular, sticky, oily, or difficult to pick.
Best fit: SP-WS0810 is best suited for production lines where products need to be arranged, stacked, sorted, or oriented before entering the packaging machine, especially when manual handling is unstable or when the packaging machine requires a fixed infeed pattern.

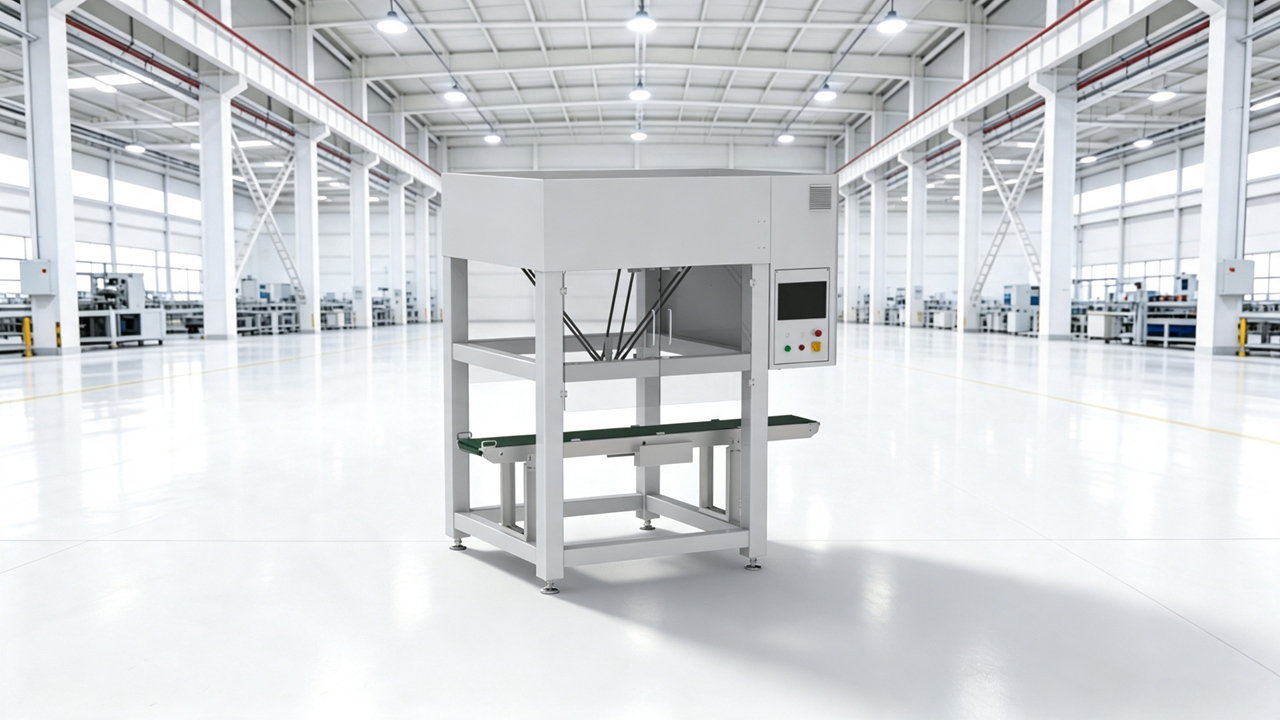

Soontrue-Group-31-Axis-Robotic-Box-Packing-Machine

Special Feature Section

  • 3+1-Axis Robotic Handling Before Packaging

    01.

    The SP-WS0810 uses a 3+1-axis robotic structure to pick, transfer, orient, and place products before they enter the packaging machine. This makes it suitable for pre-packaging product handling applications where products need to be organized into a controlled feeding pattern.

    specification-bg

  • Product Arranging for Stable Packaging Machine Infeed

    02.

    The SP-WS0810 can arrange products into a more stable and consistent infeed pattern. This is important for packaging machines that require products to enter in a fixed direction, fixed spacing, fixed grouping format, or fixed loading position.

    specification-bg

  • Stacking and Layering Before Packaging

    03.

    The SP-WS0810 can be configured for product stacking or layering before packaging. This is useful when multiple pieces, packs, or products need to be placed together in a fixed layer structure before entering the packaging machine.

    specification-bg

  • Sorting and Lane Distribution

    04.

    The SP-WS0810 can be used for product sorting and channel distribution before packaging. When products need to be divided into different lanes, sorted into a fixed sequence, or transferred from one incoming flow to multiple feeding positions, the machine can help organize the product movement.

    specification-bg

  • Orientation Adjustment and Product Positioning

    05.

    The additional axis in the 3+1-axis structure can support product orientation adjustment or rotation when the application requires it. This is useful when products need to face the same direction before entering the packaging machine.

    specification-bg

Product video

This section can show the SP-WS0810 sorting, arranging, stacking, and transferring products before they enter the packaging machine.
Through the video, buyers should check how products arrive from the upstream conveyor, how the robot picks each product, whether the product is rotated or adjusted, how products are stacked or layered, and whether the final product flow matches the required infeed pattern of the packaging machine.
For this machine, the most important viewing point is not only robot speed. Buyers should focus on whether the robot can pick products accurately, place them consistently, maintain the required spacing, and prevent product damage during handling.
If the application requires stacking, the video should show whether the stacked products remain aligned and stable. If the application requires sorting or lane distribution, the video should show whether products are transferred to the correct lane or position without missing, collision, or disorder.
The video should also show synchronization with the downstream packaging machine. A good robotic sorting system should not only move quickly, but also help the packaging machine receive products in a stable and repeatable pattern.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications WS-800 WS-1200
Pick-up speed 60-80 pcs/min 30-50 pcs/min
Rated payload ≤5 kg ≤5 kg
Max. arm span 800 mm 1200 mm
Robot power 3 kw 3 kw
Machine size 1800x1400x1985 mm 2240x1440x2300 mm
Machine weight 600 kg
Power supply 220V/1ph/50Hz
Applications Dynamic Grab with Fixed Placement and Dynamic Grab with Dynamic Placement

Application scenario

FAQ

Q1: What is the SP-WS0810 3+1-Axis Robotic Sorting Machine used for?

The SP-WS0810 is used before the packaging machine to sort, arrange, stack, orient, and transfer products into the required infeed pattern. It helps prepare products for stable downstream packaging.

Q2: Is this machine used before or after packaging?

It is mainly used before the packaging machine. Its function is to organize products before packaging, so the downstream packaging machine can receive products in the correct position, direction, layer, or sequence.

Q3: Can the SP-WS0810 stack products before packaging?

Yes. The machine can be configured to stack or layer products according to the required packaging format. The stacking method depends on product size, weight, shape, stability, and required layer pattern.

Q4: Can it sort products into different lanes?

Yes. The SP-WS0810 can be used for sorting and lane distribution when the packaging line requires products to be divided into different feeding lanes or output positions.

Q5: What does 3+1-axis mean?

The three main axes handle product movement and positioning, while the additional axis can be used for product orientation adjustment or rotation, depending on the application.

Q6: Can it connect with a flow wrapping machine?

Yes. The SP-WS0810 can be used before a flow wrapping machine to arrange, stack, sort, or position products into the required infeed pattern.

Q7: Can it connect with a cartoning machine or bagging machine?

Yes. It can be integrated before cartoning machines, bagging machines, secondary packaging machines, and other automatic packaging equipment, depending on product type and feeding requirements.

Q8: What types of products can it handle?

It can handle suitable flat products, wrapped products, pillow bags, pouches, sachets, small cartons, bakery products, biscuits, and other products confirmed by sample testing.

Q9: What end effector should I choose?

The end effector depends on product shape, weight, surface material, rigidity, and picking position. Options may include suction cups, grippers, vacuum tools, or customized picking heads.

Q10: What affects the sorting or stacking speed?

Speed depends on product size, product weight, incoming spacing, conveyor speed, picking method, rotation angle, stacking pattern, sorting logic, and downstream packaging machine rhythm.

Q11: Can it handle fragile or soft products?

It may be possible, but the picking method must be carefully designed. For fragile or soft products, sample testing is recommended to confirm whether the product can be picked, transferred, and placed without damage.

Q12: What information should I provide before requesting a quotation?

Please provide product size, weight, shape, surface condition, incoming direction, current product spacing, required stacking format, sorting pattern, packaging machine type, target speed, factory layout, and product videos.
