2-Axis Vision Robotic Box Packing Machine

  • Layer-Forming Case Packaging
  • Secondary packaging

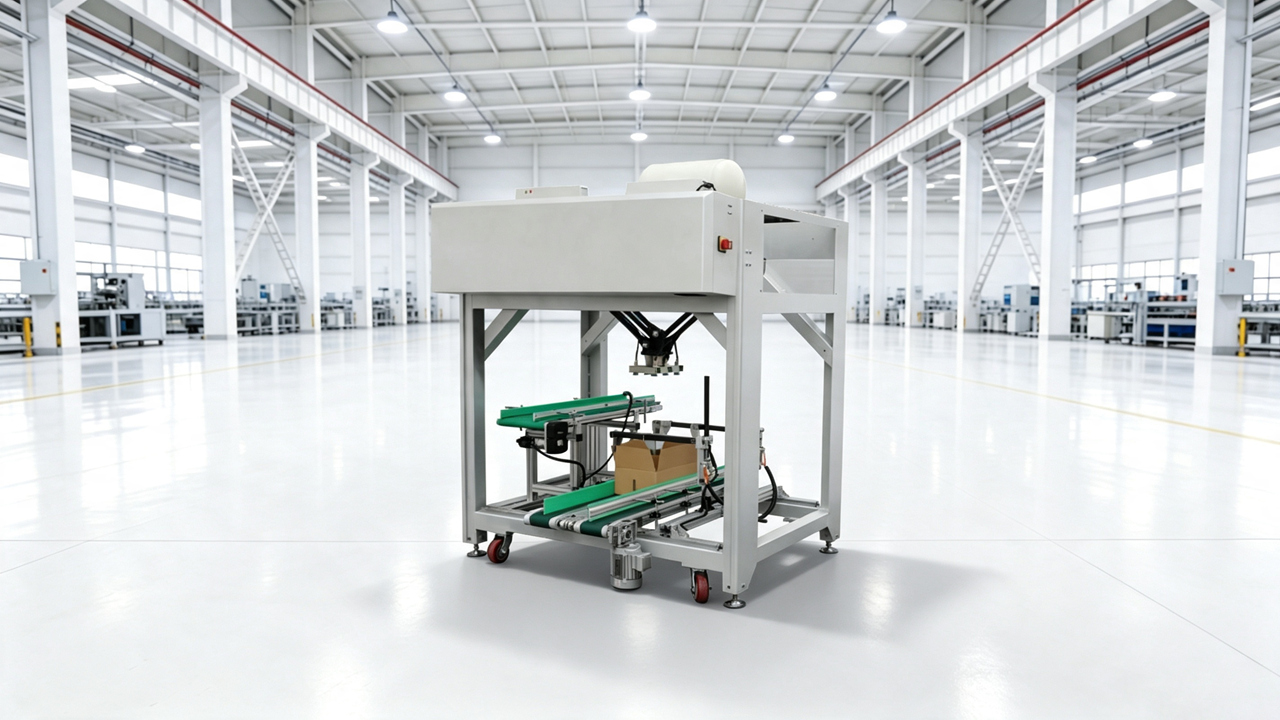

  • Soontrue-Group-2-Axis-Vision-Robotic-Box-Packing-Machine

What is 2-Axis Vision Robotic Box Packing Machine?

The 2-Axis Vision Robotic Box Packing Machine is an automatic robotic box packing system designed to identify products through vision recognition, pick them from the conveyor, and load them into cartons according to the required packing pattern. It is mainly used in automatic packaging lines where products need to be transferred from an upstream conveyor into cartons before carton sealing, checkweighing, labeling, or downstream handling.
The core advantage of this machine is Vision product picking. In real production lines, products may not always arrive in a perfectly fixed position. They may have slight spacing changes, angle differences, or position variation on the conveyor. The vision system detects product position and guides the robotic unit to pick the product more accurately before loading it into the carton.
This machine is suitable for product-to-carton loading after flow wrapping machines, bagging machines, pouch packing machines, product sorting systems, counting systems, or conveying lines. Depending on the application, it can pick single products, grouped products, or arranged products and place them into cartons in rows, layers, groups, or a fixed loading pattern.
This machine should not be described as a palletizing robot. A palletizing robot stacks finished cartons, bags, or loads onto pallets. It should also not be described as a case erector, because a case erector opens and forms empty cartons. The 2-axis robotic box packing machine performs the product loading step: vision recognition → product picking → carton loading.
The series includes STI-DT2-700B, STI-DT2-1300B, STI-DT2-1500B, and STI-DT2-600CV. These models are selected according to work distance, max payload per pick, pickup speed, product size, carton loading pattern, and the required movement range. The smaller model is suitable for faster picking of lighter products, while the larger or heavy-load models are selected when the product is heavier or the loading distance is longer.
Before requesting a quotation, buyers should provide product size, product weight per piece or per pick, product shape, packaging material, product arrival direction, conveyor speed, carton size, required loading pattern, target packing speed, upstream equipment, downstream equipment, factory layout, and product videos.
Best fit: This machine is best suited for production lines where products need to be identified by vision, picked from a conveyor, and loaded into cartons automatically with stable, repeatable placement.



Soontrue-Group-2-Axis-Vision-Robotic-Box-Packing-Machine

Special Feature Section

  • Vision Recognition for Product Picking

    01.

    The machine uses a vision recognition system to detect product position before picking. This allows the robot to identify where the product is located on the conveyor and pick from the correct position instead of depending only on fixed mechanical positioning.

    specification-bg

  • 2-Axis Robotic Pick-and-Place Structure

    02.

    The machine uses a 2-axis robotic structure for product transfer and carton loading. It picks products from the incoming conveyor and places them into cartons according to the required loading pattern.

    specification-bg

  • Clear Max Payload per Pick

    03.

    Each model has a defined max payload, which refers to the maximum weight the robot can pick per cycle under suitable configuration.

    specification-bg

  • Flexible End Effector for Different Products

    04.

    The picking head can be configured according to product type. Possible options include suction cups, vacuum tools, mechanical grippers, clamp-type tools, or customized picking structures. Different products require different picking methods. Pillow bags, pouches, sachets, trays, small cartons, wrapped products, bundles, and rigid products may require different end effectors.

    specification-bg

  • Integration with Packaging and Carton Handling Equipment

    05.

    The 2-axis robotic box packing machine can connect with upstream flow wrapping machines, bagging machines, pouch packing machines, product sorting systems, counting systems, or conveyors.

    specification-bg

Product video

This section can show the full process of vision recognition, robotic picking, and carton loading.
Through the video, buyers should check how products arrive on the conveyor, how the vision system identifies product position, how the robot picks the product, and whether the product is loaded into the carton accurately.
For this machine, the key point is the cooperation between vision recognition and robotic picking. Buyers should observe whether the robot can still pick accurately when the product is not perfectly aligned on the conveyor.
The video should also show carton positioning, product placement inside the carton, loading pattern consistency, and whether the loaded carton can move smoothly to downstream sealing equipment.
If the product is soft, fragile, slippery, or irregular, the video should show whether the picking head can hold the product securely without damage or deformation. If the application requires grouped or layered loading, the video should show whether the robot can maintain the required carton loading pattern consistently.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications STI-DT2-700B STI-DT2-1300B STI-DT2-1500B STI-DT2-600CV
Work distance 130x700x130 mm 130x1300x150 mm 150x1500x150 mm 600x600x600 mm
Max payload 15 kg 16 kg 20 kg 50 kg
Pickup speed

40 times/min(under 8kg, 130x700x130mm)

 20 times/min(under 10kg, 600x600x600mm) 20 times/min(under 10kg, 300x600x800mm 15 times/min
Motor powder 750Wx2 750Wx2 1500Wx2 1800Wx2+400W
Robot weight 78 kg 60 kg 75 kg 130 kg

Application scenario

The 2-axis Vision robotic box packing machine can be used as the product-to-carton loading unit in automatic packaging lines. Its role is to receive products from upstream equipment, identify product position through vision, pick products from the conveyor, and load them into cartons according to the required packing pattern.
Flow Wrapping Line + Vision Robotic Box Packing
A typical line can be configured as:
Flow wrapping machine → Product conveyor → Vision robotic box packing machine → Case sealer → Checkweigher / Labeler → Palletizing robot
This solution is suitable when pillow-packed products or wrapped products need to be loaded into cartons automatically after flow wrapping. The vision system helps detect the product position before picking, and the robot loads products into cartons according to the required pattern.
Product Sorting + Robotic Box Packing
A typical line can be configured as:
Product sorting / arranging system → Vision product picking → Carton loading → Carton sealing
This solution is suitable when products need to be sorted, grouped, or arranged before loading into cartons. The robotic box packing machine receives products from the sorting system and completes the carton loading process.
Secondary Packaging + Carton Loading
The machine can also be used after cartoning, bundling, counting, grouping, or weighing systems. Products can be visually identified and loaded into cartons for secondary packaging.
Soontrue Group can configure the full line according to product type, carton size, loading pattern, target speed, upstream equipment, downstream sealing method, and factory layout.

FAQ

Q1: What is the 2-Axis Vision Robotic Box Packing Machine used for?

It is used to identify products through vision recognition, pick them from the conveyor, and load them into cartons automatically. It is mainly used for product-to-carton loading before carton sealing or downstream end-of-line packaging.

Q2: What is the main selling point of this machine?

The main selling point is Vision picking. The machine uses vision recognition to detect product position, then the robot picks the product and loads it into the carton according to the required packing pattern.

Q3: How does vision recognition help box packing?

Vision recognition helps locate products on the conveyor before picking. This is useful when products are not perfectly aligned or when there are slight changes in spacing or position. It helps improve picking accuracy and carton loading consistency.

Q4: How do I choose between STI-DT2-700B, STI-DT2-1300B, STI-DT2-1500B, and STI-DT2-600CV?

Choose STI-DT2-700B for lighter products and higher-speed picking within a compact work distance. Choose STI-DT2-1300B when longer work distance is required. Choose STI-DT2-1500B when the line needs extended work distance and higher payload. Choose STI-DT2-600CV when the product is heavier and requires a higher payload configuration.

Q5: Why does STI-DT2-700B have a higher pickup speed?

STI-DT2-700B has a shorter work distance and is suitable for lighter products, so it can reach a higher pickup speed under suitable conditions. Longer-distance or heavier-load models usually require more stable motion and may have lower maximum pickup speed.

Q6: Can it connect with a flow wrapping machine?

Yes. It can be installed after a flow wrapping machine to pick wrapped products from the conveyor and load them into cartons.

Q7: Can it load products in layers or groups?

Yes, it can be configured according to the required carton loading pattern. The actual loading format depends on product size, carton size, product count, and packing requirement.

Q8: What end effector should I choose?

The end effector should be selected according to product shape, weight, surface condition, rigidity, center of gravity, and picking area. Options may include suction cups, vacuum tools, grippers, or customized picking heads.

Q9: What affects the actual packing speed?

Actual speed depends on product size, product weight, incoming spacing, vision recognition stability, picking method, carton loading pattern, robot travel distance, carton positioning, and downstream carton handling.

Q10: What information should I provide before requesting a quotation?

Please provide product size, product weight, product shape, packaging material, product photos or videos, carton size, carton loading pattern, required speed, upstream equipment, downstream equipment, and factory layout.
