Vertical Packaging Machine with Auger Filler

  • Flour
  • Coffee powder
  • Milk powder
  • Detergent Powder
  • Seasoning Powder
  • Soontrue-Group-Vertical-Packaging-Machine-with-Auger-Filler

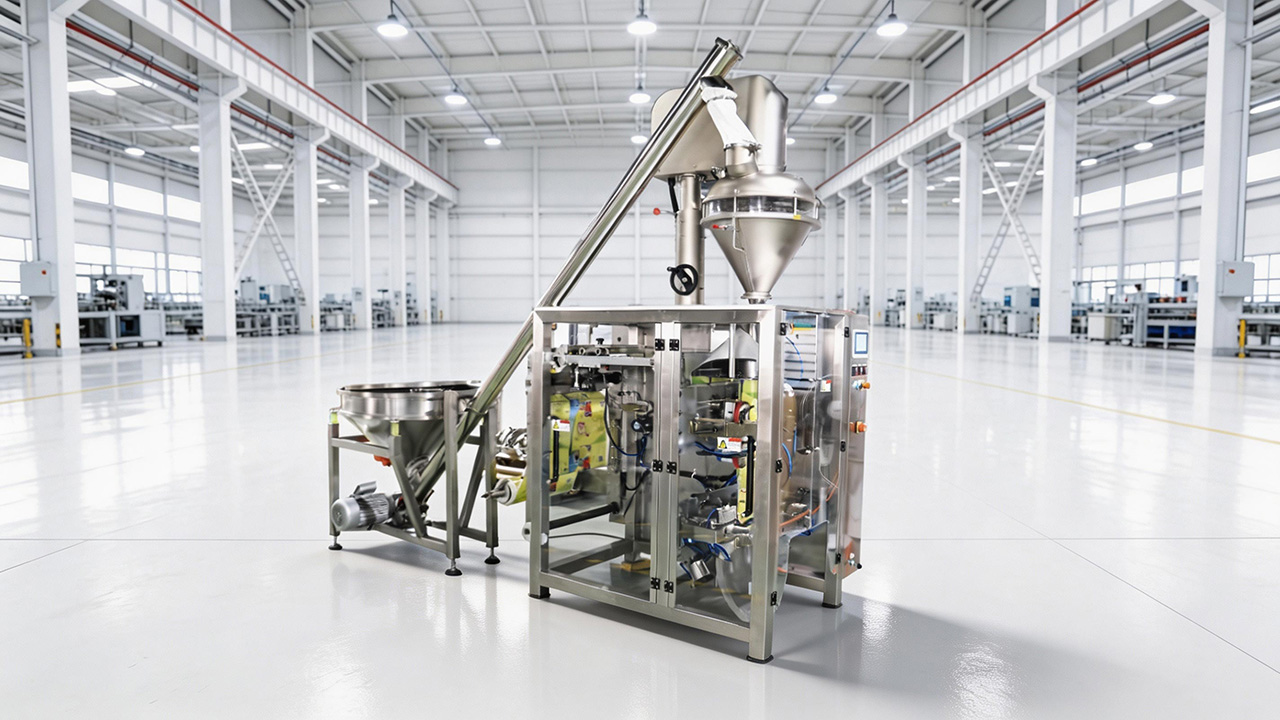

What is Vertical Packaging Machine with Auger Filler?

A Vertical Packaging Machine with Auger Filler is an automatic powder packaging system that combines an auger dosing unit with a vertical form fill seal machine. It completes powder feeding, screw dosing, bag forming, filling, sealing, and cutting in one packaging process.
The auger filler controls the filling amount through screw rotation, making it suitable for powder products that cannot be measured well by a cup filler or multihead weigher. It is commonly used for flour, milk powder, coffee powder, spice powder, seasoning powder, protein powder, chemical powder, pharmaceutical powder, and other dry powder materials.
Powder packaging requires more attention than normal granule packaging because powder flowability, bulk density, dust level, and sealing cleanliness can directly affect filling accuracy and bag quality. If powder enters the sealing area, it may reduce sealing strength or affect finished bag appearance. For this reason, the filling method, discharge timing, film material, and dust-control design should be evaluated before machine selection.
As part of Soontrue Group's powder packaging solutions, this system can be configured with screw feeding, auger filling, VFFS bagging, finished bag conveying, checkweighing, metal detection, cartoning, or case packing. The correct VFFS model should be selected based on target weight, bag length, bag width, film width, and required packing speed.
Before requesting a quotation, buyers should provide powder type, bulk density, target filling weight, bag size, film material, filling accuracy requirement, powder flowability, dust condition, and whether nitrogen flushing or dust control is required.



Soontrue-Group-Vertical-Packaging-Machine-with-Auger-Filler

Special Feature Section

  • Accurate Auger Filling

    01.

    The auger filler controls powder dosing through screw rotation, making it suitable for powder products that require stable filling weight and controlled discharge.

    specification-bg

  • Powder-Friendly Packaging Process

    02.

    The system can be configured according to powder flowability, bulk density, and dust behavior. This helps improve filling stability and reduce powder residue near the sealing area.

    specification-bg

  • Wide Range of Bagging Sizes

    03.

    The VFFS machine can be selected according to target bag length, bag width, film width, and filling weight. Small sachets and larger powder bags require different machine configurations.

    Width-Bag-Packaging

  • Integrated Powder Packaging Line

    04.

    The system can connect with screw feeders, auger fillers, dust collection devices, finished product conveyors, checkweighers, metal detectors, cartoning machines, and case packing systems.

    specification-bg

  • Servo Control System

    05.

    Servo control improves film pulling accuracy, bag length control, sealing synchronization, and stable operation during powder filling and sealing.

    specification-bg

Product video

This section can show powder feeding, auger filling, bag forming, sealing, and cutting.
Through the video, buyers can check auger filling stability, powder discharge, dust condition, vertical sealing, horizontal sealing, cutting accuracy, and finished bag appearance. For fine powders, the video should help evaluate whether powder residue affects the sealing area.

{{item.title}}

  • {{item.title}}

{{item.title}}

{{item.duration}}
VideoCover

Product parameters

Specifications ZL-180P ZL-180PH ZL-200P ZL-200PH ZL-270P ZL-300P
Bagging size range L 50-190 mm L 50-190 mm L 50-300 mm L 50-275 mm L 80-400 mm L 80-400 mm
W50-150 mm W50-150 mm W90-200 mm W90-200 mm W150-275 mm W200-295 mm
Packing speed 20-100 bags/min 20-120 bags/min 20-90 bags/min 20-120 bags/min 15-60 bags/min 15-60 bags/min
Packing film width 100-320 mm 100-320 mm 200-420 mm 200-420 mm 320-570 mm 420-620 mm
Power supply 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz
End sealing Open-close motion Continuous motion Open-close motion Continuous motion Open-close motion Open-close motion
General power 3.9 KW 4.65 KW 3.9 KW 4.9 KW 5.0 KW 4.9 KW
Machine weight 220 kg 250 kg 240 kg 280 kg 340 kg 386 kg
Machine dimensions 1112x1170x1460mm 1200x1170x1460mm 1300x1170x1582mm 1427x1170x1562mm 1730x1310x1620mm 1740x1380x1620mm
Packing material PP, CPP, PVC, PS, EVA, PET, PVDC/PVC, OPP/CPP etc.
  View Machine View Machine View Machine View Machine View Machine View Machine

Application scenario

A vertical packaging machine with auger filler can be used for automatic powder packaging lines.
A typical system can include a screw feeder, auger filler, VFFS bagger, finished bag conveyor, checkweigher, metal detector, cartoning machine, and case packing machine. For products with dust, Soontrue Group can help evaluate dust control, sealing cleanliness, filling accuracy, and line layout.
This configuration is suitable for food powder, seasoning powder, coffee powder, milk powder, flour, chemical powder, and other powder products.

Bag-shaped

Soontrue packaging machines support various flexible packaging formats to meet different product shapes, sizes and production requirements. From standard pillow bags to customized bag options, we provide reliable packaging solutions for diverse applications.

  • shape-1

    Pillow Bag Packaging

    The standard pillow bag features a simple and efficient sealing structure, making it one of the most widely used flexible packaging formats. It is suitable for a wide range of products across food, daily goods, and industrial applications.

  • shape-2

    Gusseted Pillow Bag

    A pillow bag with additional gusset folds on the side or bottom, providing increased capacity and better package stability. It is suitable for products requiring more volume or improved shelf appearance.

  • shape-3

    Linked Pillow Bag

    Multiple pillow bags are connected together through perforated sections, creating a convenient multipack format for retail, promotion, and bundled product applications.

  • shape-4

    Pillow Bag with Euro Hole

    A pillow bag equipped with a reinforced Euro hole for hanging display. It provides a practical retail presentation option while maintaining the advantages of the pillow bag structure.

FAQ

Q1: What products are suitable for a vertical packaging machine with auger filler?

It is suitable for powder products such as flour, coffee powder, milk powder, spice powder, seasoning powder, protein powder, chemical powder, and pharmaceutical powder.

Q2:Why use an auger filler for powder packaging?

An auger filler controls powder dosing through screw rotation, which is more suitable for powder products than cup filling or multihead weighing.

Q3: What affects powder filling accuracy?

Filling accuracy depends on powder flowability, bulk density, target weight, screw size, filling speed, and machine settings.

Q4: How can powder dust affect packaging?

Powder dust may affect sealing quality if it enters the sealing area. The filling system, discharge timing, film material, and dust control design should be evaluated.

Q5: Can this system pack both small and large powder bags?

Yes, but the correct VFFS model and auger filler should be selected according to target weight, bag size, and required accuracy.

Q6: What information should I provide before requesting a quotation?

Please provide powder type, bulk density, target weight, bag size, film material, required speed, accuracy requirement, and whether dust control is needed.
